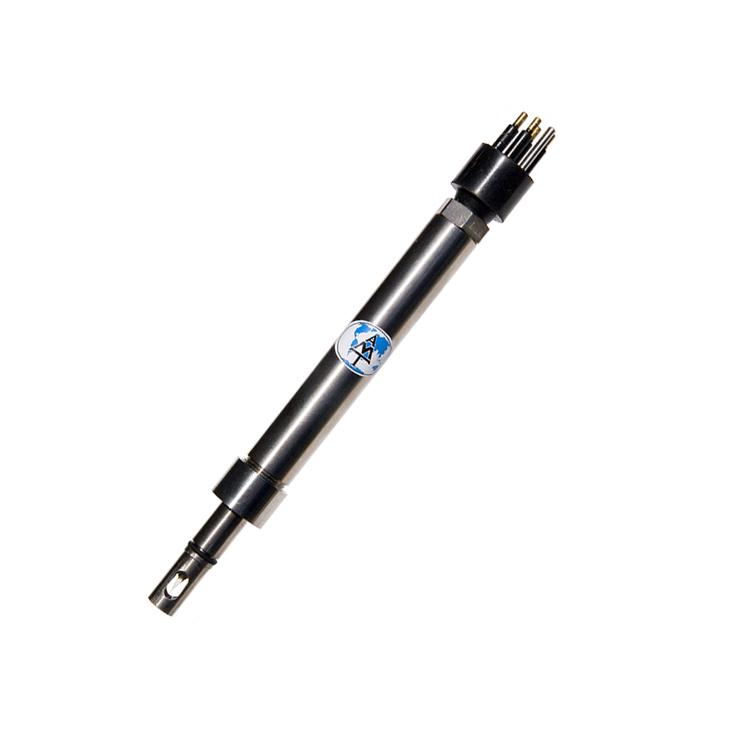

German AMT Water Quality Sensor Hydrogen Peroxide Sensor - H2O2 Sensor

1. Description of German AMT Water Quality Sensor Hydrogen Peroxide Sensor H2O2 Sensor：

The H2O2 sensor is based on the electrochemical amperometric principle and can rapidly analyze dissolved hydrogen peroxide (H2O2) in water on-site. H2O2 diffuses through a gas-permeable membrane into the sensor, where an electrochemical reaction occurs on the surface of the working electrode inside. Quantitative analysis is performed by recording the current signal corresponding to the partial pressure of dissolved H2O2. While measuring H2O2 concentration, the sample temperature also needs to be detected, and the sensor's output signal is compensated by electronic devices to correct the measured value with temperature changes (temperature compensation). This sensor is suitable for on-site measurements at depths up to 100 meters and can also be used for laboratory testing.

2. German AMTWater Quality Sensor Hydrogen Peroxide Sensor H2O2 SensorFeatures:

Short response time, approximately 2 seconds (t90%)

High resolution, unaffected by turbidity and color interference

Sensor sensing head can be replaced by user

Combines sensor slope, temperature compensation data, and mathematical formulas to calculate H2O2 concentration

3. German AMTWater Quality Sensor Hydrogen Peroxide Sensor H2O2 SensorParameters:

Measurement Principle	Amperometric method
Power Supplies	9~30 VDC (other options available)
Output	0~3 VDC (other options available)
Dimensions	24 mm (diameter) x 235 mm (length)
Connector	SUBCONN BH-4-MP (other options available)
Housing	Titanium alloy with integrated electronics
Measurement Range	0.02~10% H2O2
Accuracy	2% (of measured value)
Water Depth Rating	100 meters
Response Time	< 2 seconds (t90%)
