I. Water Quality Sensor ORP Sensor Description:

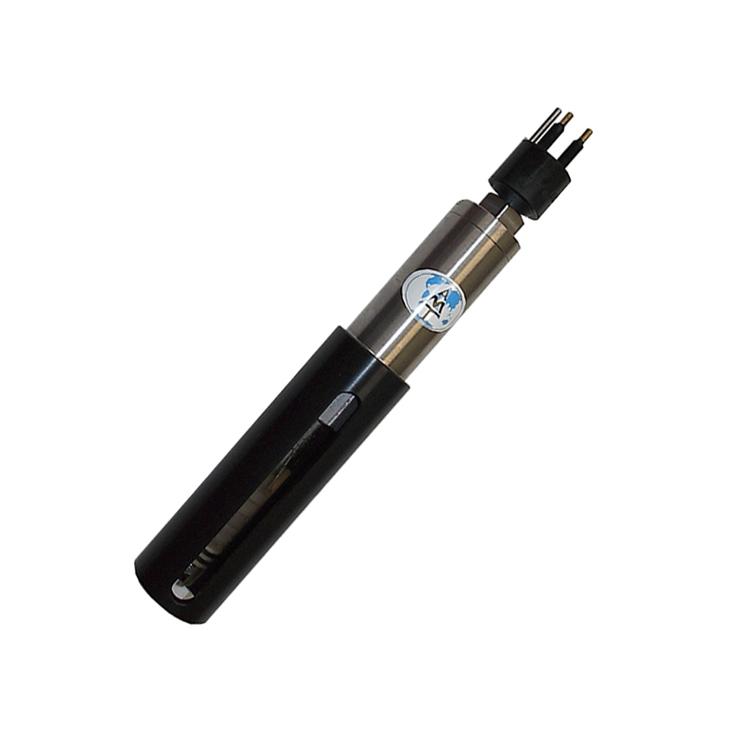

Summary: Combined with the existing CTD detection system, an integrated shallow water sensor and integrated electronic device have been developed. The sensor consists of a pressure-balanced platinum electrode and a reference electrode (Ag/AgCl) on a plastic rod. It is equipped with a ceramic diaphragm with a large number of pores. The electrolyte is a KCl gel without silver ions, allowing measurement in H2S and sulfides. The company's shallow water sensor is equipped with a titanium housing, including electronics, a plastic protective cover, and a black hole 4 M-grade titanium alloy connector. At your own risk, the protective cover can be unscrewed. The sensor must be calibrated by the customer (calibration upon request). All electrodes are finished with a wet cap containing pH 4 buffer/KCl and covering the measuring end.
II. Water Quality Sensor ORP Sensor Main Features:
| Measurement Range |
+/-2000 mV |
| Accuracy |
+/-1 mV |
| Resolution |
1 mV |
| Pressure Range |
Up to 1200 dbar |
| Dimensions |
Total Length 240mm |
| Diameter |
37mm (with protective cover) |
| Connector |
BH 4m, titanium, other requirements |
| Output: |
0 to 5 V DC |
| Input Voltage |
9 to 30 V DC |
| Response Time |
1 second (63% of reading) |
