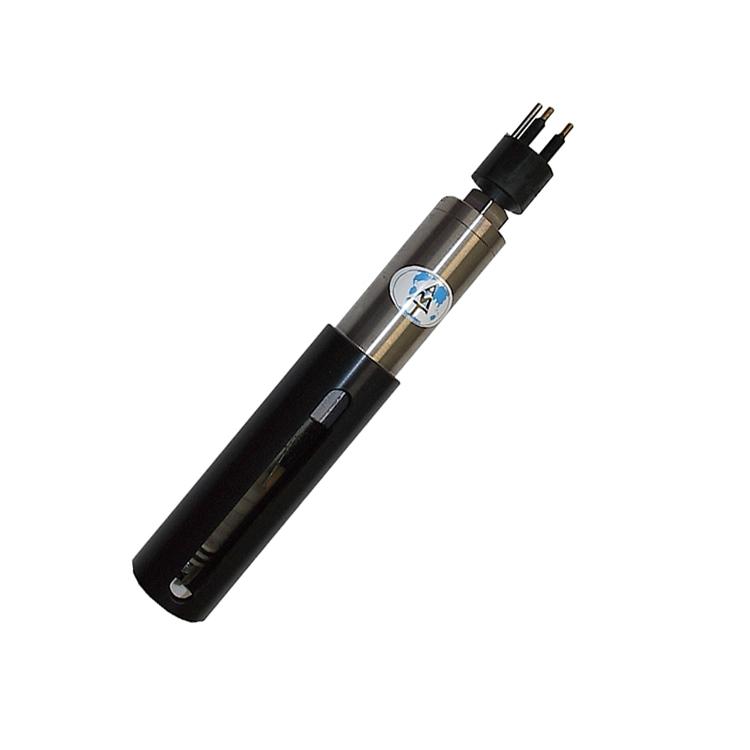

German AMT Water Quality Sensor - pH Sensor
Integrating electronic components with existing CTD detection systems, a combined shallow water pH sensor has been developed. The sensor consists of a pressure-balanced glass electrode and a reference electrode (Ag/AgCl) on a plastic rod.
Product Introduction
1. German AMT Water Quality Sensor pH Sensor Description：
Integrating electronic components with existing CTD detection systems, a combined shallow water pH sensor has been developed. The sensor consists of a pressure-balanced glass electrode and a reference electrode (Ag/AgCl) on a plastic rod. It is equipped with a ceramic diaphragm containing numerous pores. The electrolyte is a KCl gel without silver ions, allowing measurements in H2S and sulfides. The low pH water sensor is equipped with a titanium housing including electronics, a plastic protective cover, and a BH-4-M titanium alloy connector. At your own risk, the protective cover can be unscrewed. The sensor must be calibrated by the customer (calibration available upon request). All electrodes are supplied with a wet cap including pH 4 buffer/KCl, covering the measuring end.
2. German AMT Water Quality Sensor pH Sensor Parameters:
| Measurement Range |
0~14PH |
| Accuracy |
0.05 pH |
| Resolution |
0.003 pH |
| Pressure Range |
1200 |
| Dimensions |
240 mm |
| Diameter |
37 mm (with protective cover) 30 mm (without protective cover) |
| Connector |
BH 4M, titanium, other options available |
| Output |
0~5VDC |
| Input Voltage |
9~30VDC |
| Response Time |
1 second (63% of reading) |
