Product Introduction

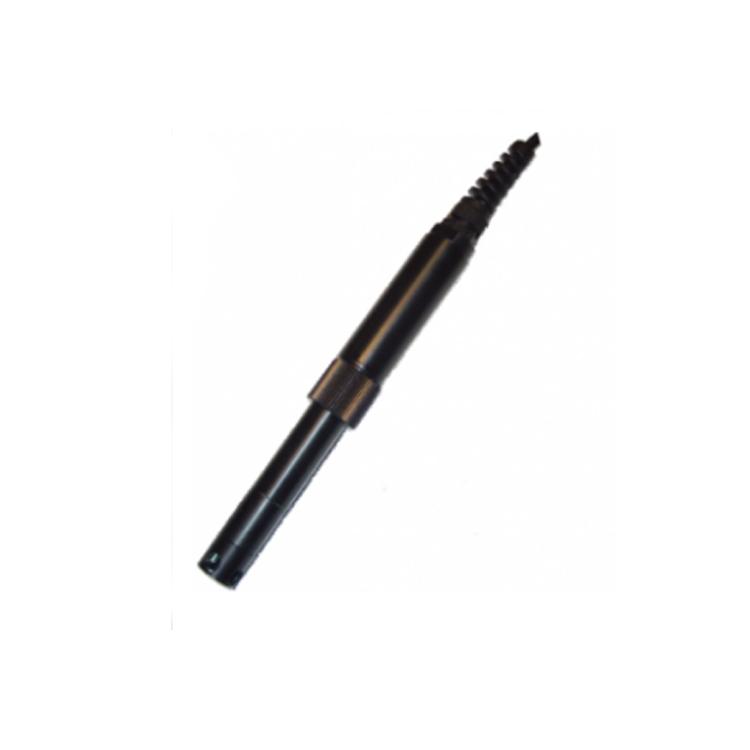

Aqualabo pH Sensor Water Quality SensorDIGISENS Series Description:
The PHEH sensor is designed to operate under harsh conditions such as pure mountain water with low conductivity of 20 µS/cm, lakes and rivers (100-2000 µS/cm), seawater with conductivity of 50 mS/cm, and wastewater with conductivity higher than 200 mS/cm.
This sensor features a 'long-life' reference electrode. Plastogel® PONSEL technology extends the life of the probe requiring refilling.
This sensor is also used in handheld and field applications, which have always been difficult for pH/ORP sensors in terms of sensor resistance, fast response time, low flow dependence, and low power consumption.
Aqualabo pH Sensor Water Quality SensorDIGISENS Digital Technology:
The 'smart' pH/ORP/temperature sensor stores calibration and historical data internally. This allows users to 'plug and play' without recalibration. Thanks to the universal Modbus RS485 protocol, PONSEL pH/ORP/temperature sensors can connect to all common devices (data loggers, controllers, PLCs, remote systems, etc.).
Aqualabo pH Sensor Water Quality SensorDIGISENSFeatures:
Combined pH/ORP/Temperature Sensor
Digital Sensor: Modbus RS 485 / SDI-12
Built-in Calibration Data
pH/ORP Body
Aqualabo pH Sensor Water Quality SensorDIGISENS Parameters:
| Measurement Principle |
Combined electrode (pH/reference): special glass, Ag/AgCl reference gel electrode (KCl) |
| Range |
0-14PH |
| Resolution |
0.01PH |
| Accuracy |
+/- 0,1 pH |
| Response Time |
< 5 s |
