Brushless DC motor driver chip - MS39545
180-degree sinusoidal drive
High-efficiency sensorless control
Analog speed control input (MS39545)
PWM speed control input (MS39549)
Wide voltage range 4V-24V
FG speed feedback output
stall detection
overcurrent protection, short circuit protection
soft start
Product Introduction

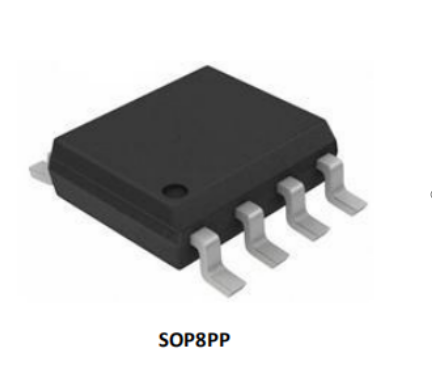

MS39545It is a sensorless three-phase DC motor driver chip that adoptsSinusoidal drive mode, featuring low noise and low vibration.There is a speed control pin to control the motor speed. And the power supply voltage can be as low asto4Vto adapt and adjust the motor speed.MS39545adoptsSOP8PPpackage, with heat sink.
1. Brushless DCFeatures of the brushless DC motor driver chip MS39545:
180-degree sinusoidal drive
High-efficiency sensorless control
Analog speed control input (MS39545)
PWM speed control input (MS39549)
Wide voltage range 4V-24V
FG speed feedback output
stall detection
overcurrent protection, short circuit protection
soft start
II.Brushless DCFeatures of the brushless DC motor driver chip MS39545:
