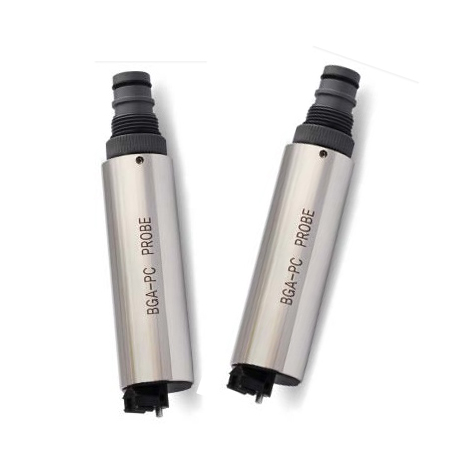

Online Blue-Green Algae Sensor - BGA-200
Operating Temperature: 0~40℃.
Operating Pressure: 0.1MPa.
Resolution: 0.01ug/l
Installation: Submersible installation
Measurement Compensation: Automatic temperature compensation NTC10K
Measurement Principle: Spectroscopy (UV-visible band 200-750nm)
Measurement Range: Blue-green algae: 0~100ug/l, Red algae: 0~80ug/l
Measurement Accuracy: ±1%F.S.
Product Introduction
Online Blue-Green Algae Sensor BGA-200 Product Description
The BGA-200 is an integrated optical blue-green algae and red algae transmitter that uses ultraviolet absorption principles and can be installed directly by immersion. It is suitable for all applications requiring blue-green algae measurement, such as marine environmental monitoring.
Online Blue-Green Algae Sensor BGA-200 Technical Parameters
Measurement Range: Blue-green algae: 0~100ug/l
Red algae: 0~80ug/l
Resolution: 0.01ug/l
Accuracy: ±1%F.S.
Operating Temperature: 0~40℃.
Operating Pressure: <0.1MPa.
Power Supply: 7~16VDC +/-10%
Signal Output: Rs485 (Modbus/RTU)
Wetted Materials: SS316L
Installation: Submersible installation
Maintenance: Recommended to clean the electrode once a month and calibrate every three months
Display: None
Measurement Compensation: Automatic temperature compensation NTC10K
Calibration: Two-point calibration
Protection Rating: Standard cable length 10 meters
Measurement Principle: Spectroscopy (UV-visible band 200-750nm)
Brand: Kacise
