Product Introduction
-

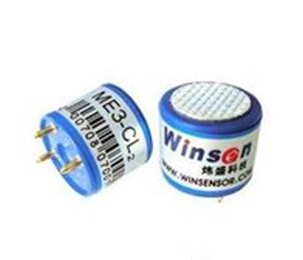

Chlorine Gas Sensor (CL2 Sensor) ME3-CL2 Product Description
-
The ME3-CL2 electrochemical gas sensor operates on the principle of electrochemistry, where the target gas undergoes oxidation-reduction reactions at the working and counter electrodes, releasing charge and generating a current through an external circuit. The current magnitude is proportional to the gas concentration, enabling quantitative measurement of the target gas.
-
Chlorine Gas Sensor (CL2 Sensor) ME3-CL2Sensor Features
-
Low Power Consumption
High Precision
High Sensitivity
Wide Linear Range
Strong Anti-Interference Capability
Excellent Repeatability and Stability
-
Chlorine Gas Sensor (CL2 Sensor) ME3-CL2Main Applications
-
Widely suitable for CL2 detection in industrial and environmental applications
-
Chlorine Gas Sensor (CL2 Sensor) ME3-CL2Technical Specifications
| Product Model |
ME3-CL2 |
| Product Type |
Electrochemical Gas Sensor |
| Package |
Plastic Package (ME3) |
| Detection Range |
0—10ppm |
| Measurement Limit |
100ppm |
| Expected Life |
2 years |
| Sensitivity |
0.6±0.15uA/ppm |
| Resolution |
0.1ppm |
| Operating Temperature Range |
﹣20℃～+50℃ |
| Operating Pressure Range |
Standard atmospheric pressure ±10% |
| Response Time (T80) |
≤60S |
| Humidity Range |
15% - 90% RH, non-condensing |
| Zero Drift (-20℃～+40℃） |
≤0.2ppm |
| Stability (per month) |
＜2﹪ |
| Load Resistance (Recommended) |
10Ω |
| Repeatability |
<2% of output value |
| Output Linearity |
Linear |
