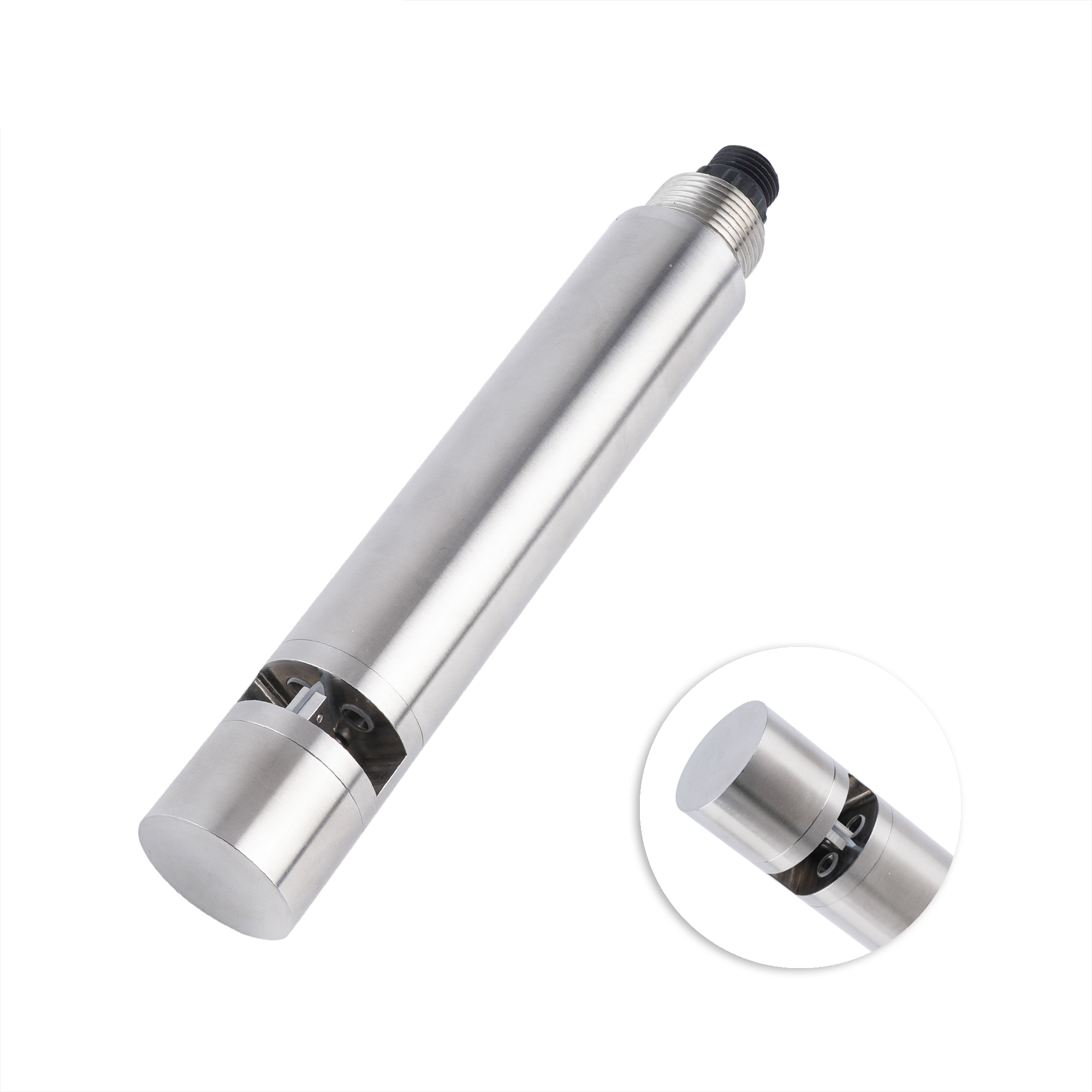

Online COD Water Quality Sensor - AMT-COD300
Measurement principle: Dual-wavelength ultraviolet absorption method
Measurement accuracy: +5% F.S
Resolution: 0.1mg/L
Calibration method: Two-point calibration
Signal output: RS-485 (Modbus/RTU)
Measurement range: 0-500mg/L
Product Introduction
COD-water-quality-sensor-01
70902002
AMT-COD300

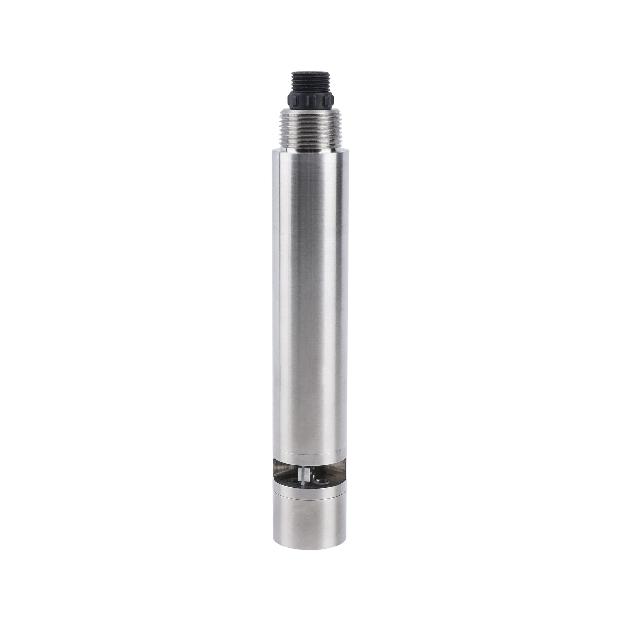

COD water quality sensor
Based on ultraviolet absorption method to analyze COD, turbidity, temperature and other parameters in water. Organic pollutants mainly absorb in the ultraviolet and visible bands. By scanning and analyzing the absorption spectrum of the 254nm ultraviolet-visible band, combined with chemical modeling algorithms, qualitative and quantitative analysis can be performed
Analyze various pollutants, especially suitable for judging changes in water quality composition or concentration. The sensor consists of a light source, spectral analysis, measurement optical path, etc. The light emitted by the light source is split into
Two beams. One beam is the measurement light, which undergoes spectral analysis after being absorbed by the water sample to be tested; the other beam is the reference light, which undergoes spectral analysis directly without passing through the water sample. By measuring the spectral characteristics of the two beams separately, the concentration of each pollutant in the water sample can be calculated.
Measurement principle: Dual-wavelength ultraviolet absorption method
Measurement accuracy: +5% F.S
Resolution: 0.1mg/L
Calibration method: Two-point calibration
Signal output: RS-485 (Modbus/RTU)
Measurement range: 0-500mg/L
Operating conditions:
Storage temperature: -5-65°C
Protection rating: IP68
Installation: Immersion type
Cable length: 5 meters
Dimensions: D32mm, L185mm
Main Application Areas
- Wastewater Treatment — Monitor effluent COD levels in real-time to ensure compliance with discharge standards and optimize treatment processes.
- Surface Water Monitoring — Track organic pollution in rivers, lakes, and reservoirs for environmental protection and early warning.
- Industrial Process Control — Control COD in industrial effluents from chemical, pharmaceutical, and food processing plants to reduce environmental impact.
- Drinking Water Treatment — Monitor raw water quality and treatment efficiency to ensure safe drinking water production.
