Cooper Instruments Pressure Sensor - PSG 120/PSG 122

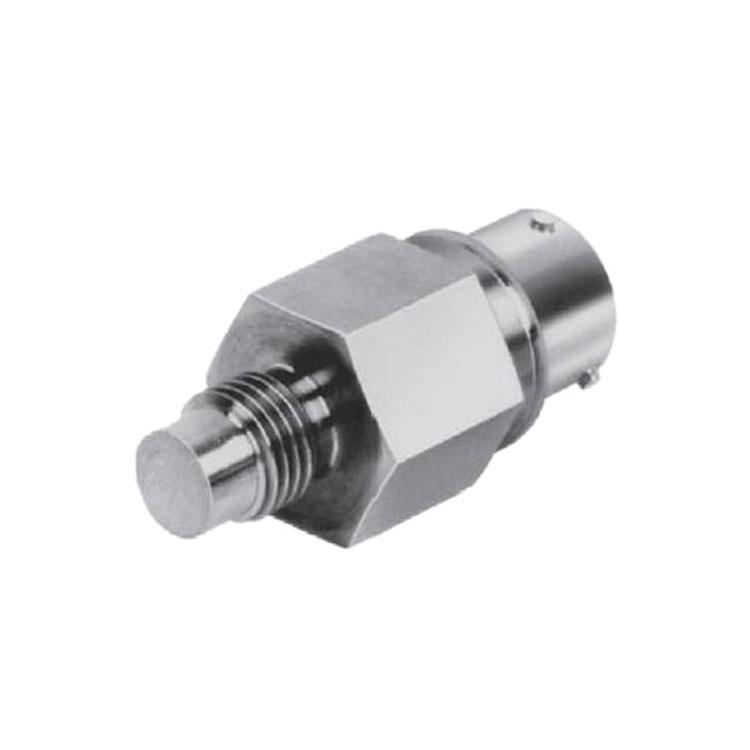

 Cooper Instruments Ultra-Miniature Pressure SensorPSG 120/PSG 122 Description:

PSG 120 and PSG 122 are ultra-miniature pressure sensors manufactured from a unified stainless steel diaphragm, which can separate thin plates and thick walls from a single piece of stainless steel material. This design produces a very sensitive yet robust sensor capable of covering the entire pressure range from 15 psi to 15,000 psi. The PSG 120 and PSG 122 sensors are ideal in corrosive fluid environments and are recommended for applications involving rough handling or where a fully sealed sensor is required.

Cooper Instruments Ultra-Miniature Pressure SensorPSG 120/PSG 122Features:

• Grouped diaphragm

• High frequency

• Flat diaphragm

• Stainless steel



Cooper Instruments Ultra-Miniature Pressure SensorPSG 120/PSG 122 Parameters:

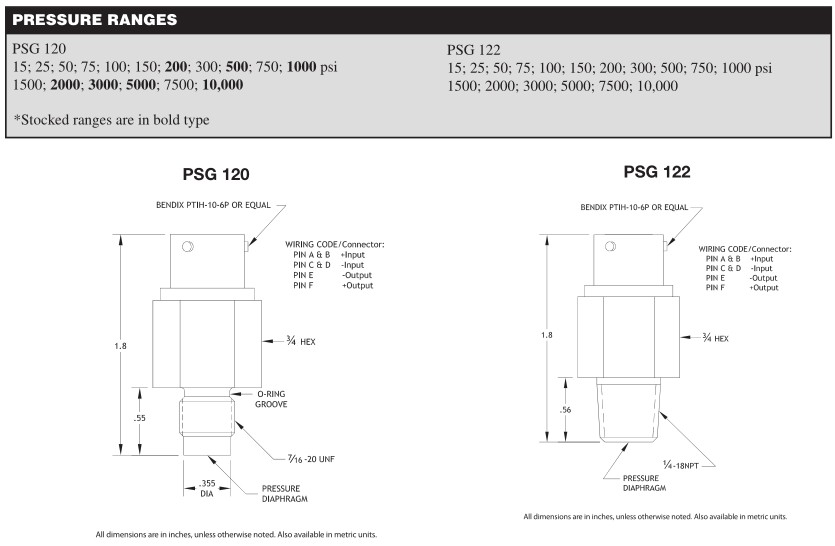

Pressure Range	15 psi to 15 ,000 psi
Linearity/Hysteresis	15 psi to 100 psi- ± .1mv 150 psi to 15,000 psi ± 0.5% F.S.
Repeatability	15 psi to 100 psi- ±0.02 mV 150 psi to 15,000 psi - ±0.1% F.S.
Material	Stainless Steel
Temperature Range	15 psi to 100 psi - .1mv/psi 150 psi to 10,000 psi -2 mV/V
