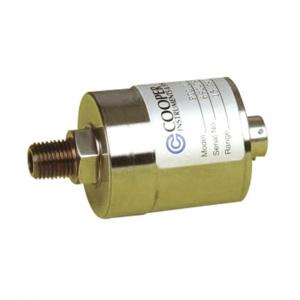

Cooper Instruments Pressure Sensor - PTG135
• Sealed
• High Accuracy
• Welded Diaphragm
• Optional Amplified Output
Product Introduction
Cooper Instruments PrecisionPressure SensorsPTG135 Description:
This model PTG135 (gauge pressure) is designed for rugged industrial applications requiring high-precision pressure measurement. These transducers feature a 4-arm 350 ohm strain gauge bridge and have a welded stainless steel construction. The PTG135 uses a 'true gauge' design with a second welded diaphragm that seals the strain gauge circuit, allowing the sensor to reference atmospheric pressure.
Cooper Instruments PrecisionPressure SensorsPTG135Features:
• Sealed
• High Accuracy
• Welded Diaphragm
• Optional Amplified Output
• 0.1% Full Scale Accuracy
Cooper Instruments PrecisionPressure SensorsPTG135Specifications:
| Pressure Range |
1 psig to 60,000 psig |
| Accuracy |
± .1% F.S. |
| Material |
Stainless Steel |
| Temperature Range |
60˚ to 160˚ F |
| Output |
2mV/V ±0.25% |

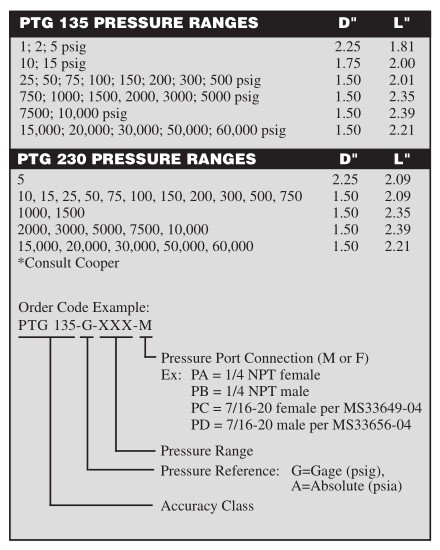

Cooper Instruments PrecisionPressure SensorsPTG135 Selection:
