UK Detectronic Water Quality Sensors - COD/TOC

1. UK Detectronic Water Quality SensorsCOD/TOCDescription:

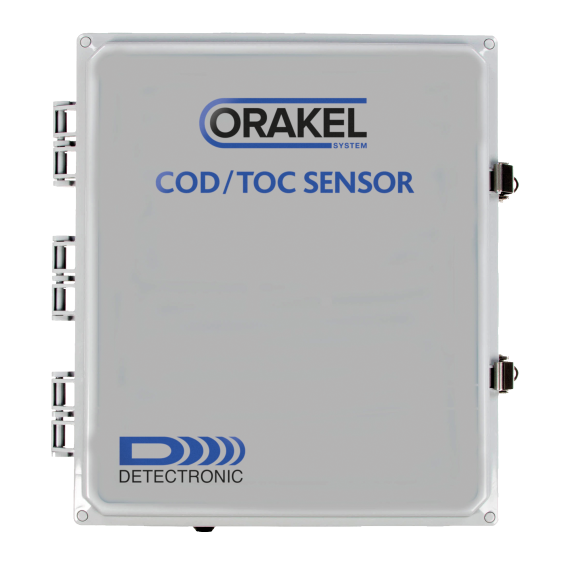

The ORAKEL COD/TOC sensor waste analyzer features a modular design and can be integrated with other sensors such as pH, turbidity, and dissolved oxygen, providing all the tools needed for a standalone UV254 analyzer or sewage discharge monitoring system.

The ORAKEL COD/TOC sensor uses a 254nm UV light source for continuous online organic monitoring.
The absorption of light provides a continuous indication of natural organic matter (NOM) in the flowing sample and serves as a continuous surrogate measurement for other values such as total organic carbon (TOC) and chemical oxygen demand (COD).

2. UK Detectronic Water Quality SensorsCOD/TOC Features:
Stable and reliable - excellent process control
Substitute for TOC, BOD, or COD
Suitable for all water bodies (seawater option)
UVT for UV disinfection control
UVA for water monitoring

3. UK Detectronic Water Quality SensorsCOD/TOCParameters:

Range	0-100% UVT, 0-6.5 UVA.
Accuracy	±1.0% UVT.
Repeatability	±0.1% UVT.
Resolution	0.1% UVT, 0.001 UVA.
Path Length	2, 4 and 10mm.
Sampling Time	10 seconds.
Flow Rate	300-800ml/min.
Cleaning	Unique fouling compensation, quick and easy in-situ cleaning technology. Automatic cleaning (optional).
Self Diagnostics	Continuous detection of excessive fouling, lamp output and electrical fault.
Humidity Control	Humidity sensor with large regeneratable desiccant system.
Wavelength	254nm (tolerance ±0.3).
Light Source	Low pressure mercury UV lamp.
Lamp Life	2 years (warranted).
Dimensions	16"(h) x 14"(w) x 8"(d).
Enclosure	IP65 (Nema 4X) wall mountable.
Fluid Connections	¼" tube compression in/out.
Electrical	100-240VAC.
Operating Temp	0 to 45°C (32 to 113°F).
Storage Temp	-20 to 60°C (-4 to 140°F).
Warranty	2 year limited warranty.
Optional Accessories	Automatic chemical cleaning. Dual sample capability. Seawater version.
