Differential Pressure Sensor - SDP600 Series
No offset, no drift, no hysteresis
I²C digital output, accuracy <0.04% full scale (near zero)
Measurement range: ±500 Pa / ±5 mbar / ±2 inch water
Excellent repeatability (even when differential pressure is less than 10 Pa)
Fully calibrated and temperature compensated
Product Introduction
I. SDP600 series differential pressure sensor product description
SDP600 seriesDifferential pressure sensorIt is a digital differential pressure sensor capable of dynamic measurement. This sensor features I²C digital output and maintains extremely high measurement sensitivity and accuracy even under micro differential pressures (less than 10 Pa). The SDP600 series differential pressure sensors offer excellent long-term stability, making drift issues a thing of the past. With the outstanding integration level and compact packaging of the SDP600 series differential pressure sensors, ISWEEK is able to provide fast, reliable, and compact CMOSens® sensors at an economical price.

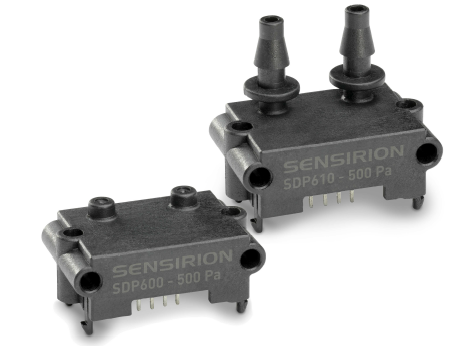

Different models of fully calibrated and temperature compensated sensors are available. The SDP600 differential pressure sensor uses a sheet-metal mounting method and is sealed with an O-ring, while the SDP610 differential pressure sensor can be connected to hoses. The SDP600 series differential pressure sensors are designed for high-quality mass production and are well-suited for demanding OEM applications.
II. SDP600 series differential pressure sensor features
No offset, no drift, no hysteresis
I²C digital output, accuracy <0.04% full scale (near zero)
Measurement range: ±500 Pa / ±5 mbar / ±2 inch water
Excellent repeatability (even when differential pressure is less than 10 Pa)
Fully calibrated and temperature compensated
III. The characteristics of SDP600 series differential pressure sensor models are shown as follows:
IV. SDP600 series differential pressure sensor applications
Medical applications
Heating, ventilation, and air conditioning (HVAC) applications
Industrial applications
Automotive electronics
