Product Introduction
Digital universal particulate matter sensor PM2.5 sensorPMS7003 Description:
PMS7003 is a digital universal particulate matter sensor based on the laser scattering principle. It can continuously collect and calculate the number of suspended particulate matter of different particle sizes in a unit volume of air, that is, the particulate matter concentration distribution, and then convert it into mass concentration, outputting it through a universal digital interface. This sensor can be embedded into various instruments or environmental improvement devices related to the concentration of suspended particulate matter in the air, providing them with timely and accurate concentration data.
Digital universal particulate matter sensor PM2.5 sensorPMS7003 Features:
Laser scattering principle for accurate measurement
Zero false alarm rate
Real-time response and support for continuous collection
Minimum detectable particle size 0.3 µm
New structure with six-sided full shielding, stronger anti-interference performance

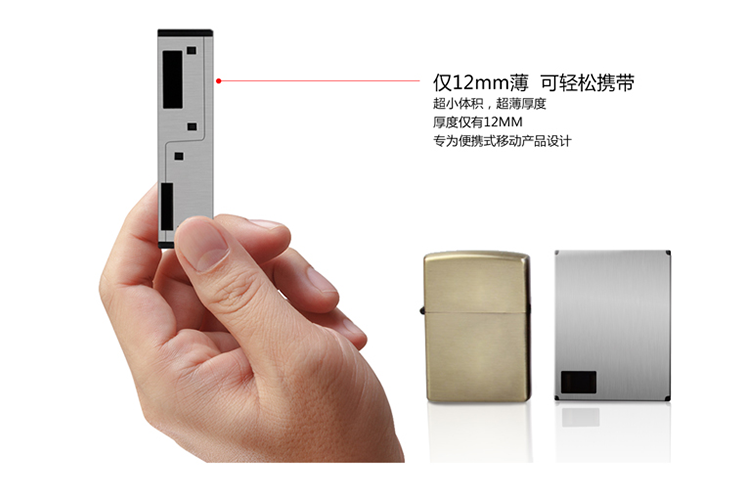

Ultra-thin and ultra-small design, only 12 millimeters, suitable for portable and wearable devices
Digital universal particulate matter sensor PM2.5 sensorPMS7003 Parameters:
| Parameter |
Indicator |
Unit |
| Particulate matter measurement range |
0.3~1.0; 1.0~2.5; 2.5~10 |
Micrometers (µm) |
| Particulate matter counting efficiency |
50%@0.3 micrometers, 98%@>=0.5 micrometers |
|
| Effective range of particulate matter mass concentration Range (PM2.5 standard value) |
0~500 |
Micrograms per cubic meter (µg/m³) |
| Maximum particulate matter mass concentration Range (PM2.5 standard value) |
≥1000 |
Micrograms per cubic meter (µg/m³) |
| Particulate matter mass concentration resolution |
1 |
Micrograms per cubic meter (µg/m³) |
| Particulate matter mass concentration consistency (PM2.5 standard value) |
±10%@100~500 micrograms per cubic meter ±10 micrograms per cubic meter @ 0~100 micrograms per cubic meter |
|
| Standard volume |
0.1 |
Liters (L) |
| Single response time |
<1 |
Seconds (s) |
| Comprehensive response time |
<10 |
Seconds (s) |
| DC supply voltage |
Typ：5.0 Min:4.5 Max:5.5 |
Volts (V) |
| Operating Current |
≤100 |
Milliamperes (mA) |
| Standby current |
≤200 |
Microamperes (µA) |
| Data interface level |
L<0.8 @3.3 H>2.7@3.3 |
Volts (V) |
| Operating temperature range |
-10~+60 |
Degrees Celsius (°C) |
| Operating humidity range |
0~99% (no condensation) |
|
| Storage temperature range |
-40~+80 |
Degrees Celsius (°C) |
| Mean time between failures |
≥3 |
Years (Y) |
| Maximum dimensions |
48×39×12 |
Millimeters (mm) |
Note 1: The maximum range refers to the sensor ensuring that the highest output value of the PM2.5 standard value is not less than 1000 micrograms per cubic metercubic meters. For values above 1000 micrograms per cubic meter, actual measurements shall prevail.
Note 2: The particulate matter concentration consistency data is data 2 in the communication protocol (see Appendix A) under the measurement environmental conditionsis 20°C, humidity 50%.
