particlesplus Particle Counter Module OPC Dust Module - 9301P
9301P-OEM: Measures 0.3 µm to 25 µm
Flow rate of 0.1 CFM (2.83 LPM)
Long-life laser diode technology
Simultaneously measures data from up to 30 channels
Product Introduction
particlesplus Particle Counter Module OPC Dust Module9301P-OEM Description:
The 9301P-OEM has a detection range of 30 particle count channels, covering particle sizes from 0.3um to 25um, with a flow rate of 0.1CFM (2.83LPM). This assembly is mounted on an easy-to-integrate board and includes a particle sensor, particle counting board, integrated vacuum pump with manifold and pre/post filters, real-time clock/calendar with backup battery, data logging and storage for up to 65,000 sample records, communication via 3.3V UART, and an operating voltage range of 7~15VDC.
The Particles Plus 9301P-OEM exceeds ISO 21501-4 and JIS B9921 standards, ensuring compliance with the onboard pulse height analyzer.
particlesplus Particle Counter Module OPC Dust Module9301P-OEM Features:
• Flow rate of 0.1 CFM (2.83 LPM)
• Long-life laser diode technology
• Simultaneously measures data from up to 30 channels
• Particle concentration up to 15,000,000 particles/ft³ @ 10% coincidence loss
• Internal vacuum pump with manifold and pre/post filters
• Storage capacity for 65,000 sample records for data redundancy
• User-selectable channel sizes
• Exceeds ISO 21501-4 and JIS B9921 standards
• Assembly mounted on the back of an easy-to-integrate board
• One-year warranty, extendable
particlesplus Particle Counter Module OPC Dust Module9301P-OEM Specifications:
| Model |
9301P-OEM |
| Particle Size Range |
0.3~ 25 µm |
| Particle Size Channels |
Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm |
| Flow Rate / Accuracy |
0.1CFM（2.83LPM）±3% |
| Aerosol Concentration Range |
0.01~ 20,000 µg/m³ |
| Light Source |
Long-life laser diode |
| Resolution |
3 mg/m |
| Zero Stability |
No significant drift |
| Calibration |
NIST traceable |
| Internal Vacuum Pump |
Internal pump with automatic flow control |
| Number of Channels |
30 |
| Custom Size Channels |
Calibration for custom size channels |
| Airflow |
Internal monitoring |
| Audible Alarm |
Adjustable built-in alarm |
| Communication Mode |
Universal Asynchronous Receiver/Transmitter (UART) |
| Standards |
ISO 21501-4 and JIS B9921 |
| Instrument Calibration |
Recommended calibration at least once a year |
| Dimensions (L x W x H) |
3.41" x 4.89" x 1.57" (8.7 cm x 12.4 cm x 4.0 cm) including inlet height |
| Weight |
13 oz |
| Data Storage |
65,000 sample records (rotating buffer) including particle count data and environmental data |
| Sampling Time |
1s to 99hrs |
| Power Supplies |
7 - 15 VDC |
| Operating Conditions |
41º~104ºF (5º~40ºC) / 20%~95% non-condensing |
| Storage Conditions |
32º~122ºF (0º~50ºC) / up to 98% non-condensing |
| Warranty |
1-year limited warranty, extendable |

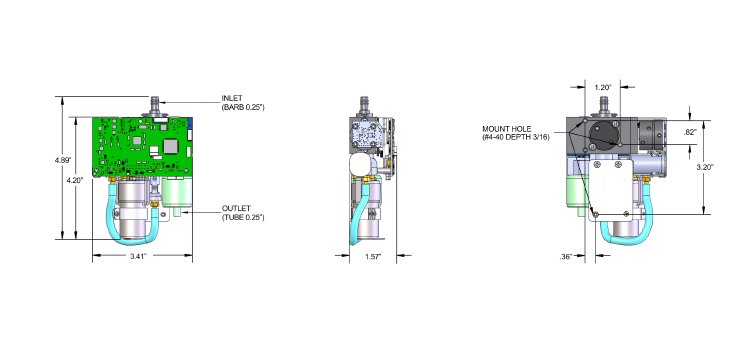

particlesplus Particle Counter Module OPC Dust Module9301P-OEM Dimensions:
