Product Introduction

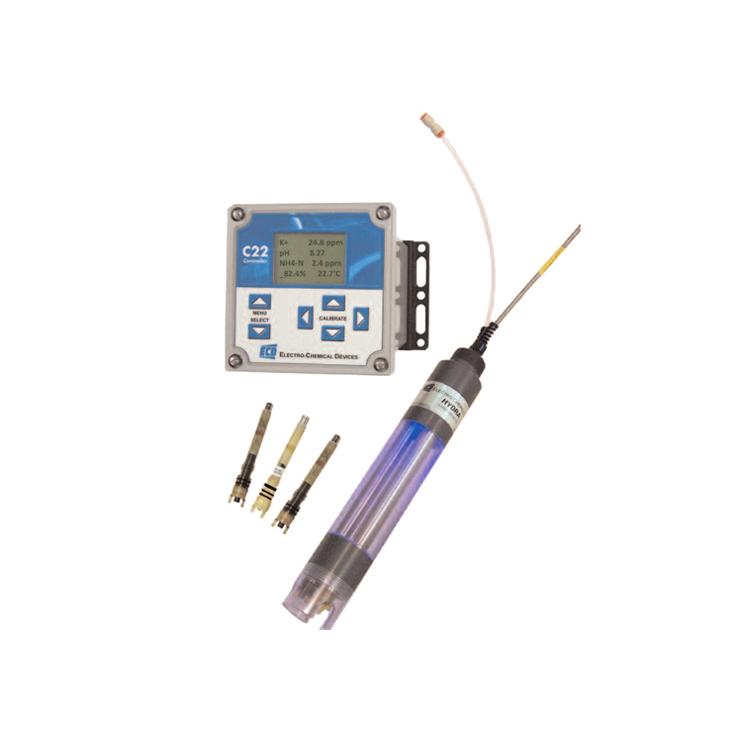

I. American ECDAmmonia Nitrogen SensorHYDRA NH4+-N Description:
The three-electrode system uses a spray cleaner. Ammonium nitrogen (NH4+-N) is the primary measurement method. Potassium ion and pH glass electrodes are used to compensate for the NH4+ signal. The sensor is waterproof with an ingress rating of IP68.
The ammonia nitrogen analyzer measures the concentration of ammonia nitrogen (NH4+-N) in water. The sensor uses three electrodes to determine NH4+-N concentration: the ammonium ion electrode and the potassium ion electrode.
Electrode and pH electrode. It is designed for a wide variety of waters. Typical applications include monitoring environmental waters, lakes, streams, and wells, as well as wastewater treatment in aeration tanks and wastewater.
The ammonium ion electrode provides the primary measurement method. Any potassium ions in the sample will cause a positive interference because they have the same size and charge as ammonium ions. The potassium ion electrode measures the potassium ion content in the sample, and the HYDRA C22 analyzer subtracts the appropriate amount of signal from the ammonium measurement.
The ammonium ion electrode measures only ammonium ions (NH4+) rather than ammonia (NH3). Ammonium ions and ammonia coexist in solution in a pH-dependent ratio. More acidic pH values favor NH4+, while more basic values favor dissolved ammonia gas, NH3. The pH electrode measures pH, and the HYDRA C22 analyzer calculates the total NH4+-N concentration based on the pH and NH4+ concentration profiles stored in the instrument.
II. Features of the American ECD Ammonia Nitrogen Sensor HYDRA NH4+-N:
Ammonium ISE Electrode
K+, pH, and temperature electrodes
Internal Signal Conditioning
Rugged PVC design
III. Advantages of the American ECD Ammonia Nitrogen Sensor HYDRA NH4+-N:
Fast and accurate ammonium ion measurement of NH4+ or NH4+-N with complete compensation for pH, K+ interference, and temperature. Removable electrode protection for easy maintenance.
Clean the sensor with pressurized water or air.
The amplified signal allows for distances up to 200 meters between the sensor and the analyzer.
IV. Parameters of the American ECD Ammonia Nitrogen Sensor HYDRA NH4+-N:
| Measurement Range NH4+-N |
0.1 to 14,000 ppm |
| 工作温度 |
0° C- 50° C (32° F-122° F) |
| Low/High Flow |
Low 0.1 m/s High 3.0 m/s |
| Accuracy |
±3% of reading, depending on calibration |
| Response time |
T90 one minute |
| Enclosure |
NEMA 4X, LxWxD: 5.7” x 5.7” x 7 |
| Input Power |
110/220 VAC @ 50/60 Hz |
| Product Model |
Model and Product Description |
| 1290030-1 |
HYDRA® NH4-N Sensor, complete, NH4, K+, pH, Temp, Spray Cleaner head and 30 p. cable |
| 1290030-2 |
HYDRA® NH4-NSensor,complete, NH4, pH,Temp,Spray Cleaner head and 30 p. cable (No K+ Sensor) |
| 16KA2221.K100 |
HYDRA® C22 NH4-N Analyzer, K+ compensated, (2) 4-20 mA output, 0.1 - 20 ppm NH4-N and (2) relays* |
| 16KA2221.J100 |
HYDRA® C22 NH4-N Analyzer, (2) 4-20 mA output, 0.1 - 20 ppm NH4-N and (2) relays* (No K+ compensation) |
| Product Model |
Spare Parts and Accessories Description |
| 2005083.VIT |
Ammonium Electrode Cartridge (recommended spare) |
| 2005034.VIT |
Potassium Electrode Cartridge (recommended spare) |
| 2005145.VIT |
pH Electrode Cartridge (recommended spare) |
| 3300854-1 |
Replacement Spray Nozzle |
| 3501050-1 |
PVC Front Sensor Guard |
| 2010445-1 |
Ammonium Calibration solution, NH4-N 1 ppm |
| 2010446-1 |
Ammonium Calibration solution, NH4-N 100 ppm |
| 2010443-1 |
Potassium Calibration solution, 1 ppm |
| 2010444-1 |
Potassium Calibration solution, 100 ppm |
| 2010100 |
pH 4 Buffer Calibration solution |
| 2010101 |
pH 7 Buffer Calibration solution |
| 1000300-1 |
4-20 mA USB Data Logger |
