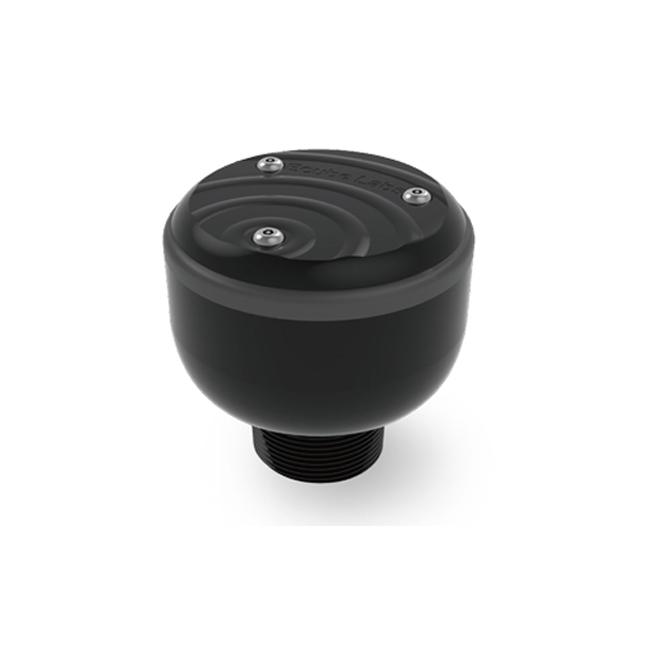

Korean Ecube Labs Ultrasonic Sensor for Waste Bins - Clean CAP Plus
The CleanCAP fill-level sensor can be installed on various trash bins or containers. If the container is made of plastic, the sensor can be fixed onto the container with screws. If the container is made of metal, the sensor can be mounted onto the container using a bracket.
Product Introduction
1. Korean Ecube labsUltrasonic SensorTrash Bin Clean CAP Plus Features:
Can be installed on various trash bins or containers
The CleanCAP fill-level sensor can be installed on various trash bins or containers. If the container is made of plastic, the sensor can be fixed onto the container with screws. If the container is made of metal, the sensor can be mounted onto the container using a bracket.
Detects solid and liquid materials
Clean CAP ultrasonic sensors can detect solids (general waste, paper, glass, e-waste, textiles, etc.) and liquids (oil, sludge, agricultural products, etc.). Sensing distance can reach from 30 cm to 400 cm (4 meters/13 feet).
Wireless communication with data management platform
Clean CAP uses 2G/3G wireless network data transmission to send real-time information to the monitoring data management platform of the Clean City Network, ensuring that our customers can plan waste collection methods through intelligent decision-making.
Customized for harsh environments to ensure durability
Clean CAP's functionality and battery life have been verified through various tests. It is completely unaffected by dust or water, with a battery life of up to 10 years and an operating temperature range from -30 degrees Celsius (-22 degrees Fahrenheit) to 80 degrees Celsius (176 degrees Fahrenheit).
2. Korean Ecube labs Ultrasonic Sensor Trash Bin Clean CAP Plus Parameters:
| Power Supply | 3.6V high performance Lithium Battery |
| Dimensions ((Height*Width*Length) |
95mm x 96mm (3.74in. x3.8in.) |
| Net Weight |
470g(1.04 lbs.) |
| Battery Life |
10 years |
