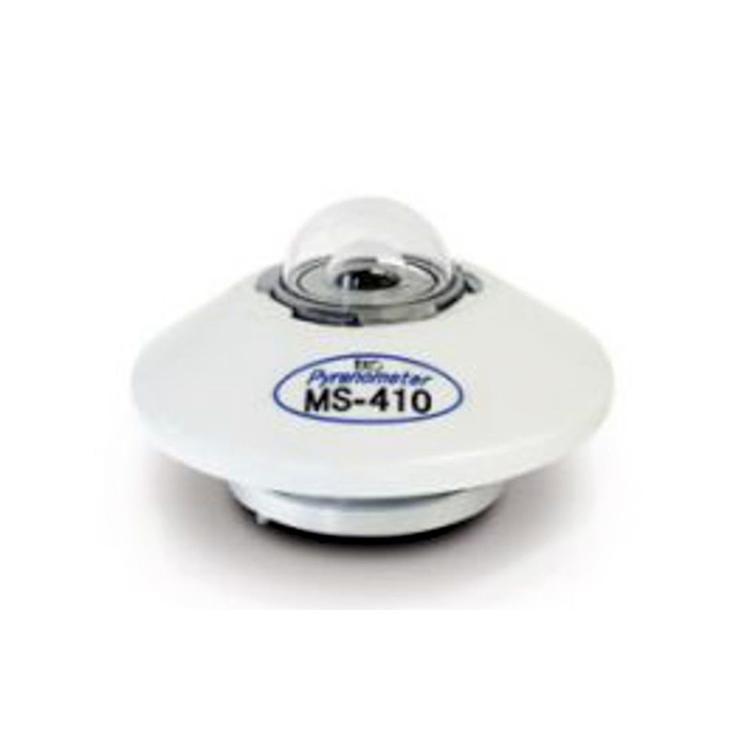

Japanese EKO Photoelectric Sensor - MS-410

Japanese EKO Photoelectric Sensor MS-410 Description:

The MS-410 pyranometer measures broadband solar irradiance. MS-410 is perfectly suited for sampling solar radiation flux over 10-minute intervals in horizontal or tilted configurations. It fully complies with ISO 9060 "First Class" specifications. The flat sensor surface, coated with a special highly absorptive black paint, is protected by two transparent hemispherical glass domes. The MS-410 has aPractical lightweight aluminum housing and stable low-TC detector. High-quality machined hemispherical glass dome is key to the superior performance characteristic of the MS-410.



Japanese EKO Photoelectric Sensor MS-410Features:

Pyranometer

Lightweight Aluminum Housing

Double Dome Low Zero Offset

Typical Network Sensors

Perfect balance of cost-effectiveness and quality.

Japanese EKO Photoelectric Sensor MS-410Parameters:

Model	MS-410
ISO 9060 Classification	First Class Standard
Response Time (sec) 95%	18
Zero Offset Thermal Radiation (200W/m²)	< 6 W/m²
Zero Offset Temperature Variation (5K/hr)	< 2 W/m²
Instability (change/year)	<1.5 %
Non-linearity (1000 W/m²)	<1 %
Directional Response (at 1000 W/m²)	< 20 W/m²
Spectral Selectivity (0.35 - 1.5 µm)	< 1 %
Temporal Response (50 c-band)	<2 %
Tilt Response (at 1000 W/m²)	<2%
Sensitivity (µV/W•m⁻²)	Approximately 7~14
Impedance (Ω)	Approximately 20~140
Operating Temperature Range (°C)	- 40 to +80
Cable Length	10m
Wavelength Range	285 to 3000 nm
