Product Introduction

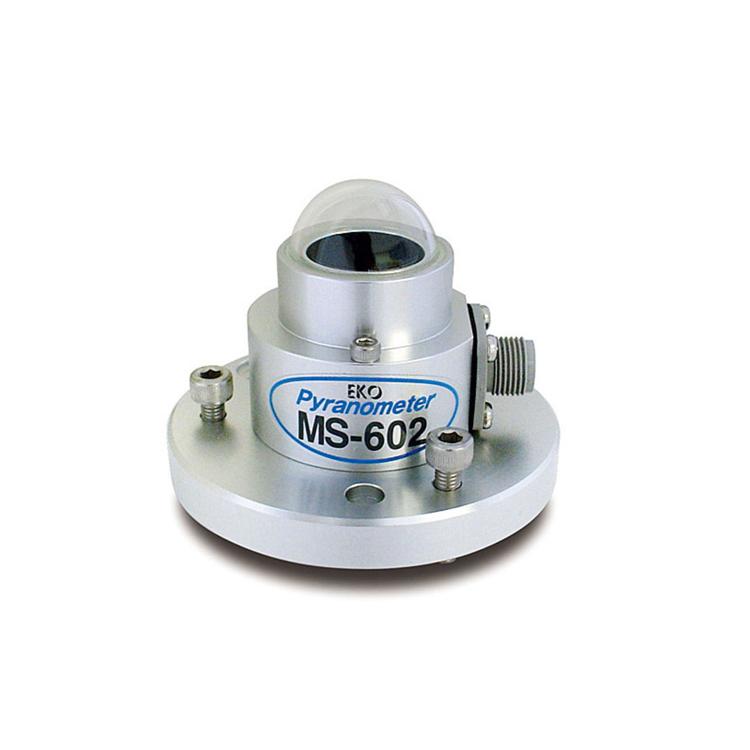

Japan EKO Photoelectric Sensor MS-602 Description:
The MS-602 pyranometer is the smallest true thermal pyranometer, providing an economical measurement solution for solar radiation measurement, capturing the full solar spectrum.
The MS-602 complies with ISO second-class performance standards, yet its temperature is not high, and its characteristics are only found in higher-grade pyranometers. This sensor can be found in many meteorological networks and professional small photovoltaic sites.
Japan EKO Photoelectric Sensor MS-602 Features:
Second-Class Pyranometer
Most Economical Thermal Sensor
Low Temperature Dependence
Compact Meteorological Sensor
Japan EKO Photoelectric Sensor MS-602 Specifications:
| Model |
MS-410 |
| ISO 9060 Classification |
Secondary Standard |
| Response Time (sec) 95% |
17 |
| Zero Offset Error Thermal Radiation (200W/m²) |
<10W/m² |
| Zero Offset Error Temperature Change (5K/hr) |
<6W/m² |
| Instability (Change/Year) |
<1.7 % |
| Non-linearity (1000 W/m²) |
<1.5% |
| Directional Response (at 1000 W/m²) |
< 25 W/m² |
| Spectral Selectivity (0.35 - 1.5µm) |
< 1 % |
| Temperature Response (50°C band) |
<2 % |
| Tilt Response (at 1000 W/m²) |
<2% |
| Sensitivity (µV/W·m⁻²) |
Approximately 7 |
| Impedance (Ω) |
Approximately 20~140 |
| Operating Temperature Range (°C) |
- 40 to +80 |
| Irradiance Range (W/m²) |
0 - 4000 W/m2 |
| Cable Length |
10m |
| Wavelength Range |
285 to 3000 nm |
