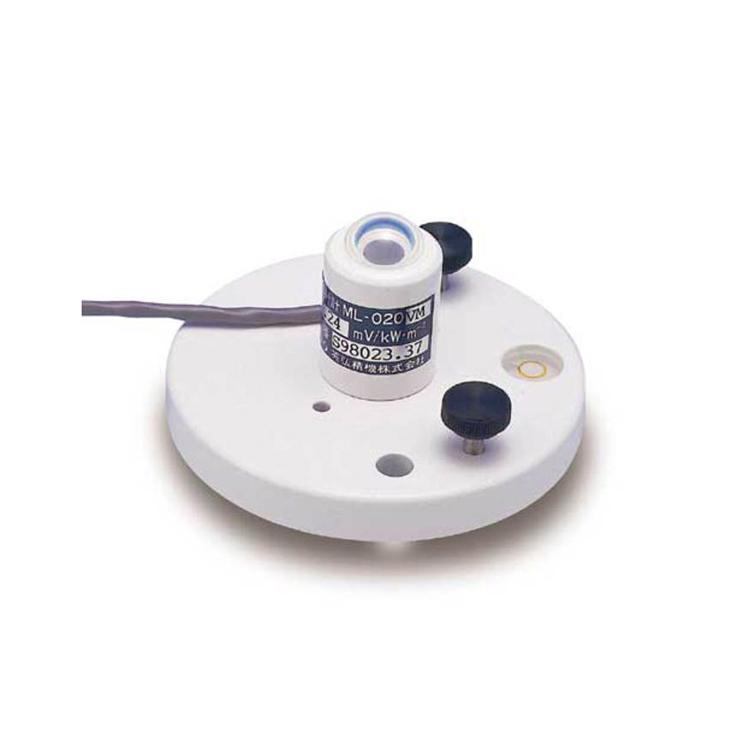

Japan EKO Photosynthetically Active Radiation Sensorml - 020pDescription:
The compact ML-020P sensor or quantum sensor has a special optical filter to simulate the spectral response function of typical plant leaves. The standard sensor is most commonly used for horticultural or agricultural applications. The photon activity range is between 400-700 nm, representing Photosynthetically Active Radiation (PAR), called Photosynthetic Photon Flux (PPF) or Photosynthetic Photon Flux Density (PPFD) in μmol/m²/s (micromoles of photons per square meter per second).
The sensor's low output voltage can be easily converted to 4-20 mA current or higher voltage with the MS-4...20 mA converter. The mV/mA converter can be pre-programmed and optimized for the operating range, compatible with common measurement devices.
Fast response time (10 ms)
Horticultural/Agricultural useCompact design
PAR response curve
Glass dome with diffusing optics
Low temperature dependence
Japan EKO Photosynthetically Active Radiation Sensor ML-020P Specifications:
| Model |
ML-020 PAR |
| Measurement Range |
0~3000 μmol•s-1•m-2 |
| Output (Approx.) |
0~10,000μV (0~10mV) |
| Internal Impedance |
160 Ω |
| Operating Temperature Range |
-10 to +50°C |
| Temperature Response (-10~+50°C) |
1.1 % |
| Dimensions |
Sensor 22 x 33 mm |
| Mounting Plate 80 x 51 mm |
|
| Weight |
Sensor 65 g |
| Mounting Plate 475 g |
|
| Cable Length |
5 m |
| Mounting Plate |
Optional |
