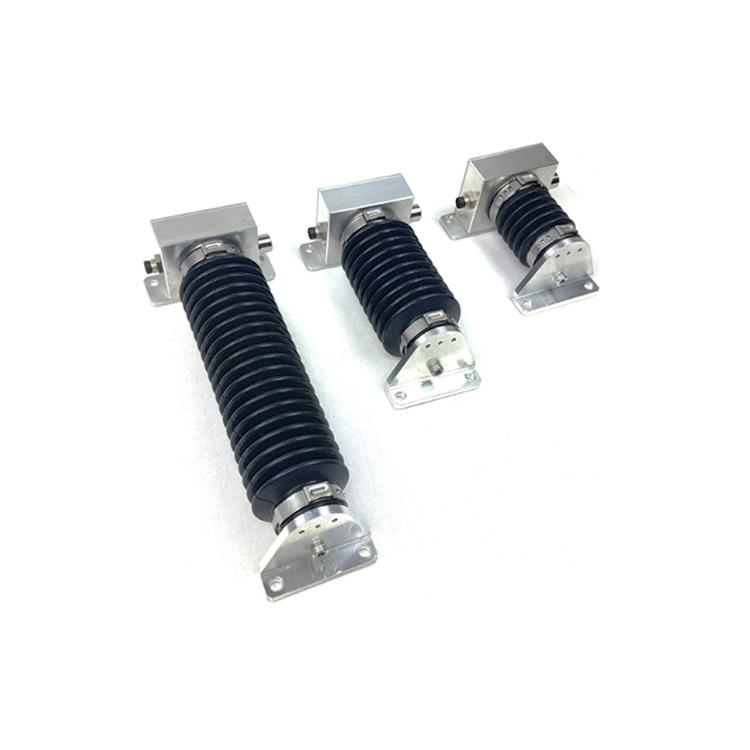

Elastisense Displacement Sensor EDS Series Description:
The displacement sensor can be used as a standalone unit or as part of a system with other daisy-chained sensors. In standalone mode, the sensor requires a 24V DC power supply and outputs an analog current in the range of 4-20mA. The output signal is linearly proportional to displacement, with 4mA corresponding to 0mm and 20mA representing the sensor's maximum displacement.
The flexible nature of the sensor enables off-axis displacement measurement in three directions.
Elastisense Displacement Sensor EDS Series Features:
• Power supply: 24V DC
• Analog output: 4 - 20mA
• Absolute accuracy: 0.1%
• Power consumption: < 100mA
• Update rate: up to 10k / second
• Operating temperature: -20°C to 80°C
• Operating humidity: 5% RH to 80% RH
• Ingress protection: IP63
Elastisense Displacement Sensor EDS Series Parameters:
| Model |
EDS20 |
EDS50 |
EDS100 |
EDS200 |
| Measurement Range (mm) |
20 |
50 |
100 |
200 |
| Power Supplies |
24V DC |
|||
| Analog Output |
4 - 20mA (1 - 5V or 2 - 10V available as options) |
|||
| Digital Output |
Integer value in nm transmitted on full duplex RS485 network |
|||
| Accuracy |
0.1% Full Scale |
|||
| Power |
< 100mA |
|||
| Update Rate |
Up to 10k samples/second |
|||
| Operating Temperature |
-20°C to 80°C |
|||
| Operating Humidity |
5%RH to 80%RH |
|||
| Protection Rating |
IP63 |
|||
| Dimension A (mm) |
77 |
116 |
185 |
315 |
| Dimension B (mm) |
63 |
102 |
171 |
301 |
