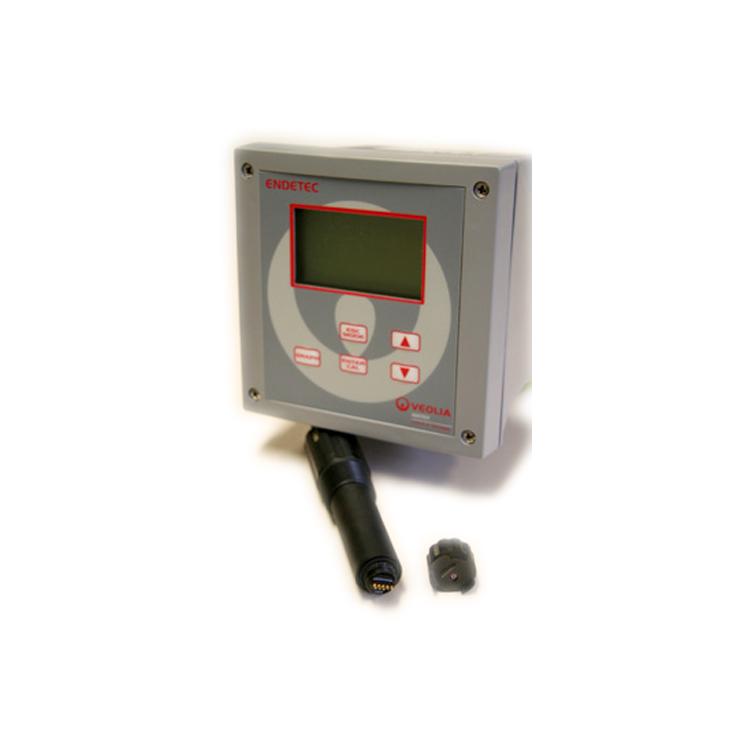

Endetec Water Quality Monitoring Sensor pH/ORP Temperature Measurement - KAPTA 2000

Endetec Water Quality Monitoring SensorpH/ORP Temperature MeasurementDescription:

pH/ORP, free active chlorine, temperature measurement and control instrument for chlorine (HOCl, HOBr, or ClO2) and temperature.

KAPTA™2000Water Quality Monitoring SensorDesigned for industrial and water treatment markets, combined with the KAPTA™2000 - ac2 chlorine and temperature probe, it provides fast and accurate measurement of free chlorine.
The controller has all key functions, providing users with flexible setup, measurement, and control systems, from simple chlorine measurement and recording to industrial process control and chemical dosing.
The KAPTA™2000 controller can measure chlorine, ORP, pH, and temperature and is equipped with 2 current outputs, 4 relays, and P.I.D. functions allowing 6 external points for measurement or control. The controller is easy to operate, with a 128x64 pixel resolution graphic display, providing continuous readout of chlorine/temperature measurement and control output device status, and can be set in 5 different languages (English, French, German, Italian, and Spanish).
The controller is IP66 rated, wall-mounted, and equipped with RS485 serial communication for remote monitoring and data storage. The onboard software is designed for 2-point calibration to ensure accurate, reliable performance and sensor diagnostic information.

Endetec Water Quality Monitoring Sensor pH/ORP Temperature MeasurementKey Features:

Sensor for measuring current
Measurement of main disinfectants: HOCL, HOBr, or CLO2
User-replaceable sensing head.
Inline monitoring up to 10bar pressure

Easy adjustment

1-year warranty

Endetec Water Quality Monitoring Sensor pH/ORP Temperature MeasurementAdvantages:
Real-time water network monitoring
No membrane/electrolyte maintenance
No chemical operation

Endetec Water Quality Monitoring Sensor pH/ORP Temperature MeasurementTypical Applications:

Water quality control

Drinking water safety

Industrial process control

Chemical dosing and control

RO membrane protection

Swimming pool water quality

Cooling towers

Fish farming
