Product Introduction
Japan Figaro Hydrogen Sensor Gas Sensor TGS2616-C00 Description:
The sensing element is composed of an integrated heater and a metal oxide semiconductor on an alumina substrate, housed in a standard TO-5 package. When the target gas is present in the air, the higher the gas concentration, the higher the sensor's conductivity. Using a simple circuit, the change in conductivity can be converted into a signal output corresponding to the gas concentration.
TGS2616-C00 contains a newly developed sensing element that is minimally affected by interfering gases such as alcohol, while having high selectivity for hydrogen.
Japan Figaro Hydrogen Sensor Gas Sensor TGS2616-C00Features:
High selectivity for hydrogen
Simple application circuit
Japan Figaro Hydrogen Sensor Gas SensorTGS2616-C00 Applications:
Hydrogen leak detection in fuel cell systems

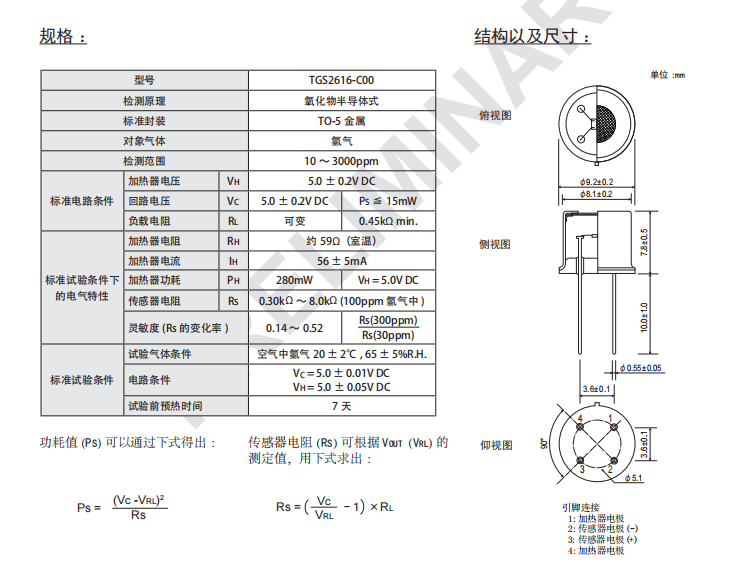

Japan Figaro Hydrogen Sensor Gas Sensor TGS2616-C00 Parameters:
