Product Introduction

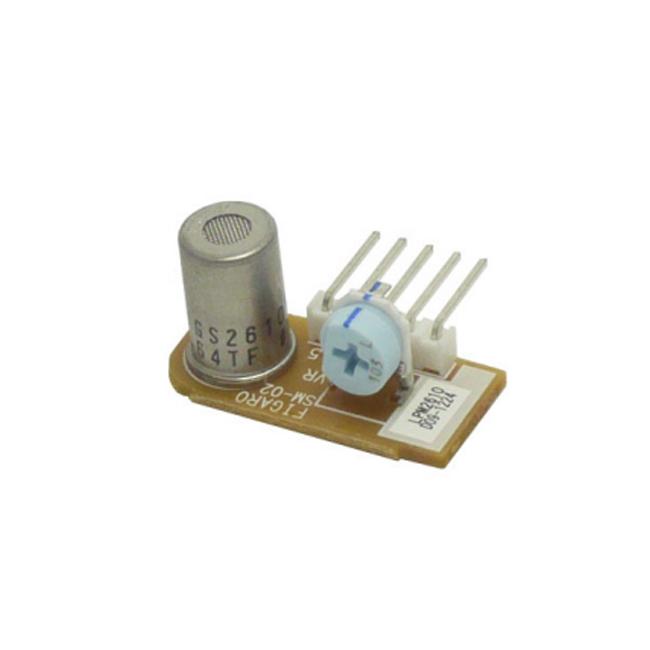

Japan Figaro LP Gas Pre-calibrated ModuleLPM2610 - D09 Description:

The LPM2610 is a pre-calibrated module for LP gas alarms, with precise calibration functionality derived from Figaro's temperature and humidity control device. The sensor TGS2610-D00 used in this module comes with a filter that eliminates interfering gases such as alcohol, thus providing higher selectivity and faster response to LP gas. In the manufacturing process of reliable civilian LP gas alarms, the calibration of the alarm point is important but complex and time-consuming, requiring expensive calibration equipment. Using this module eliminates this costly calibration process, making it easier and simpler for users to manufacture civilian LP gas alarms.

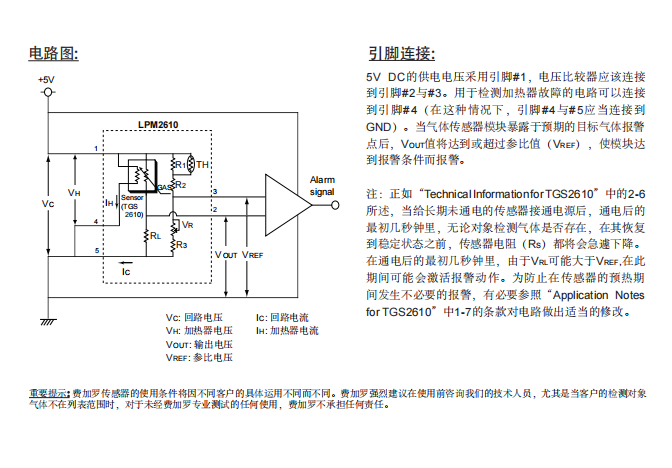

Figaro provides users with a complex gas detector circuit design, which includes a temperature compensation circuit combined with a built-in thermistor, and a low-power LP gas sensor with individually adjustable load resistance. The socket-type connection facilitates periodic sensor replacement. This input/output socket simplifies the connection between the module and the main board, allowing the main board to be used for both methane and LP gas detectors by simply replacing the module. This module is designed to meet the performance requirements of EN50194 and UL1484.

For sensor sensitivity characteristics, please refer to "Technical Information for TGS2610". For further information on circuit design, please refer to "Application Notes for TGS2610".

Japan Figaro LP Gas Pre-calibrated ModuleLPM2610 - D09Features:

Factory Calibrated

Temperature Compensation Circuit

Uses Anti-interference Sensor TGS2610

Compact Size

RoHS Compliant

Japan Figaro LP Gas Pre-calibrated ModuleLPM2610 - D09Applications:

Civilian LP gas alarm control

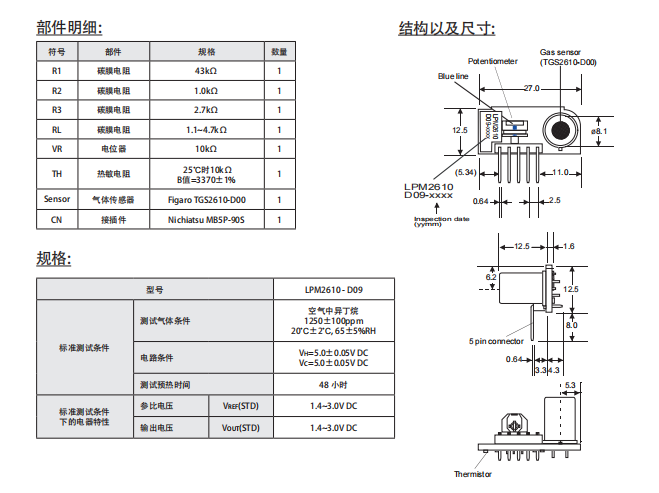

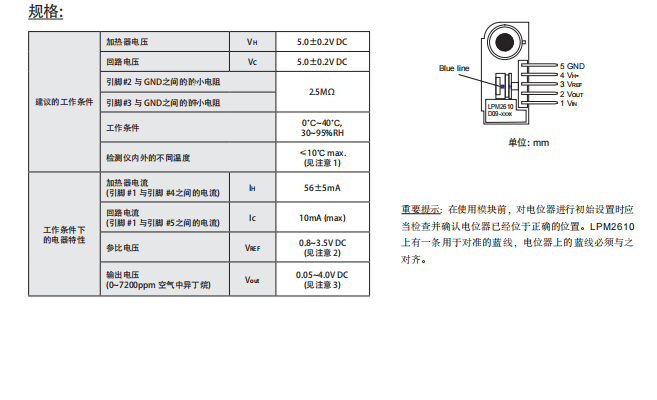

Japan Figaro LP Gas Pre-calibrated ModuleLPM2610 - D09 Parameters:
