Product Introduction
I. Japan Figaro Refrigerant Gas R-32 Pre-calibrated ModuleFCM2630-C00Description:
FCM2630-C00 is a pre-calibrated module equipped with a sensor that can detect non-flammable refrigerant gas R-32. Its compact size allows for easy integration into various devices.
By using this module, the need for sensitivity adjustment, temperature compensation, and other processes specific to gas sensor applications can be eliminated, enabling the convenient construction of highly reliable gas leak detection systems. Moreover, the sensor in this module uses a plug-in connection, greatly facilitating equipment maintenance such as periodic sensor replacement.Gas sensor equipped in this moduleTGS2630It has a built-in filter adsorption layer that reduces the influence of interfering gas alcohol, providing high selectivity for non-flammable refrigerants like R-32. For sensitivity characteristics and other information, please refer to the gas sensor
TGS2630 product introduction. FCM2630-C00 meets the performance requirements of the standard "JRA4068:2016 (Performance 3)" established by the Japan Refrigeration and Air Conditioning Industry Association.
II. Japan Figaro Refrigerant Gas R-32 Pre-calibrated ModuleFCM2630-C00Features:
Factory Calibrated
Built-in Temperature Compensation Circuit
Interference Gas Resistance
Compact and Small Size
III. Japan Figaro Refrigerant Gas R-32 Pre-calibrated ModuleFCM2630-C00Applications:
Leak detection of refrigerants in air conditioners and refrigeration systems

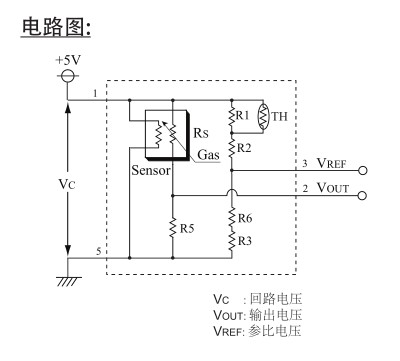

IV. Japan Figaro Refrigerant Gas R-32 Pre-calibrated ModuleFCM2630-C00Circuit Diagram:
V. Japan Figaro Refrigerant Gas R-32 Pre-calibrated ModuleFCM2630-C00Pin Configuration:
| Pin |
Name |
Description |
| 1 | Vc |
Circuit Voltage |
| 2 | Vout |
Sensor Output Voltage |
| 3 | V REF |
V REF |
| 4 | - |
- |
| 5 | GND |
Common Ground |
Recommended socket: PAP-05V-S (JST)
