Product Introduction

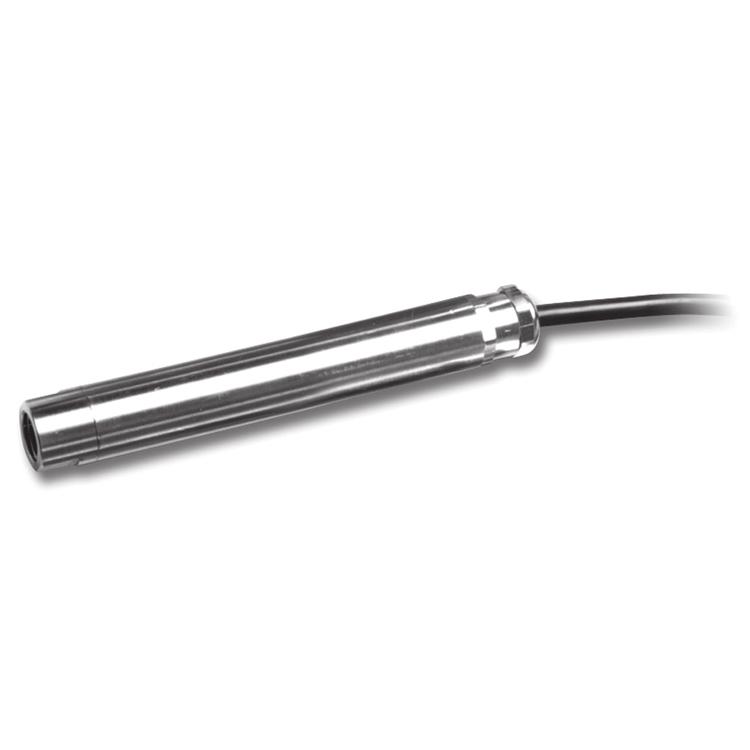

1. Description of Fiber Optic Pressure Sensor FOP-C:
The FOP-C is afiber optic pressure sensormainly used for general industrial applications in harsh and hazardous environments, where high pressures are typically present.
The FOP-C fiber optic pressure sensor features small size, high accuracy, immunity to EMI/RFI, and corrosion resistance.
Today, research engineers in various industrial fields may need to monitor the performance of certain characteristics over time to improve processes and product technologies, and these characteristics may be precisely reflected in pressure changes during operation, production, or throughout the product's lifecycle. Using the FOP-C fiber optic pressure sensor enables comprehensive analysis of targets in challenging environments.
The FOP-C fiber optic pressure sensor is based on the well-known Fabry-Perot interference principle. The sensor's unique design is based on non-contact deflection measurement of a stainless steel diaphragm, which is completely different from traditional pressure measurement techniques. Pressure changes cause variations in the length of the Fabry-Perot interference cavity, and even under harsh conditions of temperature, EMI, humidity, and vibration, our fiber optic signal conditioner can continuously measure the cavity length with high accuracy. The sensor's all-welded stainless steel structure, free of epoxy, sealants, and any other polymer materials, ensures its robustness.
The FOP-C fiber optic pressure sensor provides better and more reliable pressure measurement for existing applications in the industry, and also has the capability to expand into new applications with high operating pressures. The maximum pressure measurement of the FOP-C fiber optic pressure sensor is 10,000 psi, making it an ideal product for any scientific field with high-pressure situations. In these extreme environments, we can provide fiber optic lead cables of various lengths and types.
The stainless steel alloys used to manufacture the FOP-C are SS316L and SS17-4PH (diaphragm). If better saltwater corrosion resistance is required, the FOP-C can be made entirely of SS316.
2. Key Features of Fiber Optic Pressure Sensor FOP-C
Intrinsically Safe
Immune to EMI/RFI
Range 30 to 10,000 psi
Accuracy 0.25%
Lead cable up to 3 km
3. Applications of Fiber Optic Pressure Sensor FOP-C
Industrial environments
Online process monitoring
Harsh and hazardous environments
High-pressure environments
Aerospace applications
Oil wells and natural gas, pumping stations
Plastic injection molding & extrusion monitoring
Food packaging
