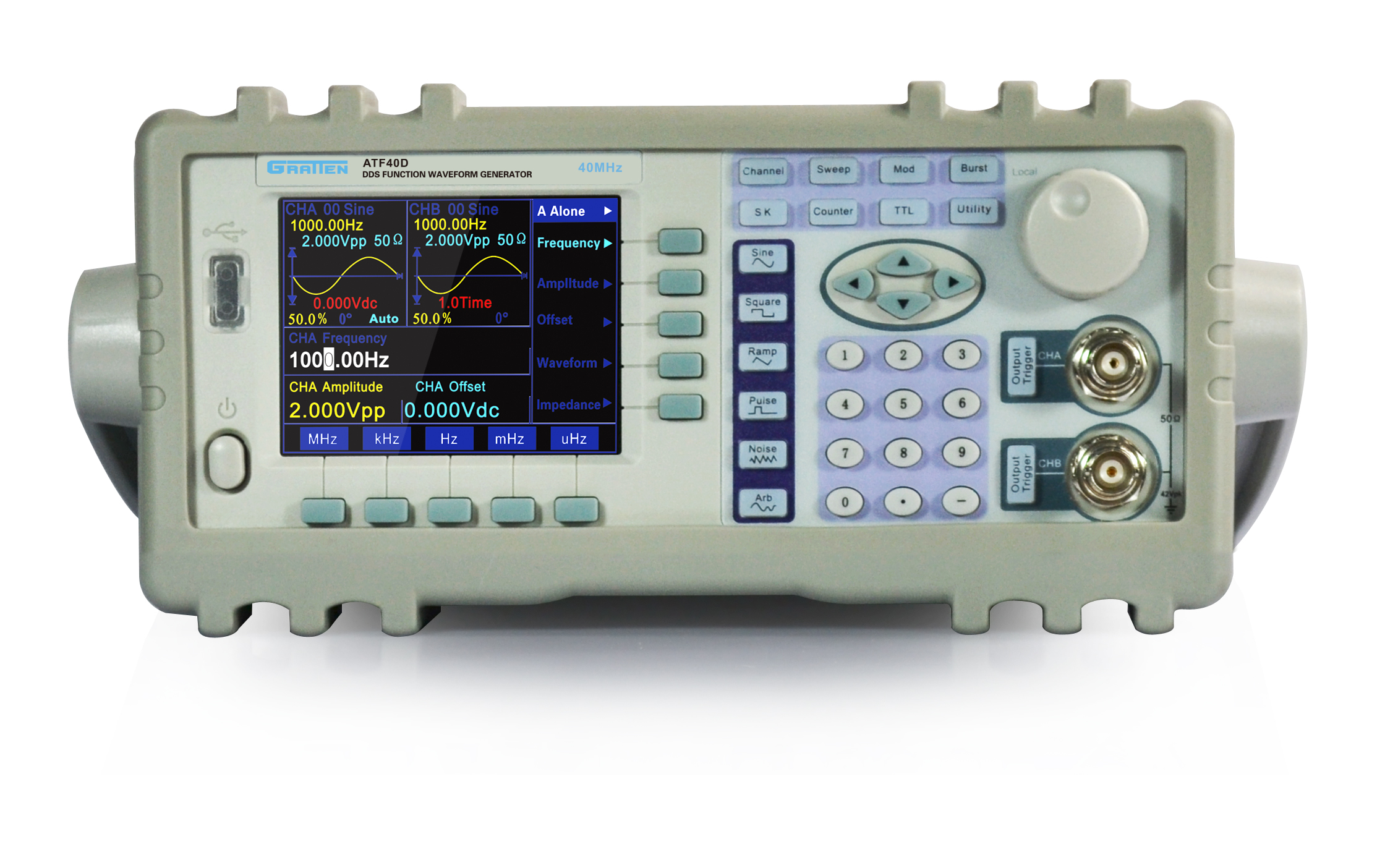

Function Signal Generator - ATF
Advanced DDS technology, dual independent outputs
3.5-inch TFT display
Can output 32 standard or internally stored fixed waveforms
Minimum output of 1mV (50Ω) stable waveform
Multiple modulation functions: AM (D series), FM, FSK, ASK, PSK
Sweep frequency, sweep amplitude, burst, and AB addition functions (D series)
Overvoltage, forced current, output short circuit, and reverse voltage protection circuits
Options: RS232 interface, USB interface (D series), frequency counter, power amplifier
Product Introduction
1. Description of ATF Function Signal Generator
The ATF function signal generator can output 32 standard or internally stored fixed waveforms, with a minimum output of 1mV (50Ω) stable waveform. It features overvoltage, forced current, output short circuit, and reverse voltage protection circuits, making it a cost-effective signal source.
2. Features of ATF Function Signal Generator
Advanced DDS technology, dual independent outputs
3.5-inch TFT display
Can output 32 standard or internally stored fixed waveforms
Minimum output of 1mV (50Ω) stable waveform
Multiple modulation functions: AM (D series), FM, FSK, ASK, PSK
Sweep frequency, sweep amplitude, burst, and AB addition functions (D series)
Overvoltage, forced current, output short circuit, and reverse voltage protection circuits
Options: RS232 interface, USB interface (D series), frequency counter, power amplifier
3. Technical Specifications of ATF Function Signal Generator
