Product Introduction

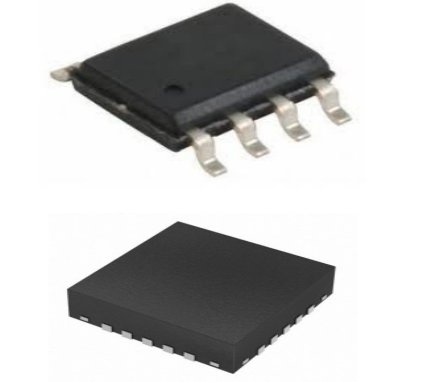

MS1549It is a 10-bit switched-capacitor, successive approximation type AD converter.This chip has 2 digital input terminals, 1 three-state output port (CS), 1I/O CLOCK port and 1 digital output terminal (DATA OUT), can achieve oneData transmission from a three-bus interface to the serial port of the main controller.Internal automatic sample-and-hold, ratiometric scale calibration conversion range,Anti-noise interference function, and the switched-capacitor design makes the total error at full scale relativelyMaximum is only ±1 LSB, so it can be widely used in analog-to-digital and digital-to-analog conversionsCircuit.
1. Characteristics of the general-purpose analog-to-digital converter chip MS1549:
10-bit resolution A/D converter
Internal sample-and-hold function
Total unadjustable maximum error is ±1 LSB
On-chip system clock
Pin compatible with TLV1549
COMS process
2. Applications of the general-purpose analog-to-digital converter chip MS1549:
