Product Introduction

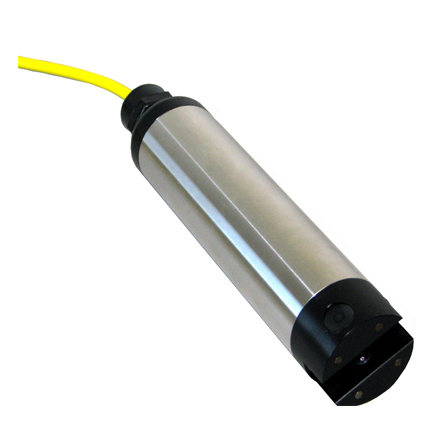

I. US Global Water Turbidity Sensor WQ730BIntroduction
WQ730Turbidity Sensoris a highly accurate submersible instrument for field environment or process monitoring. Applications for WQ730 include: water quality testing and management, river monitoring, flow measurement, reservoir water quality testing, groundwater testing, water and wastewater treatment, wastewater and industrial control.
According to the construction method 180.1 turbidity measurement, the WQ730 turbidity sensor is a 90-degree scattered light turbidimeter. The WQ730 turbidity sensor focuses a beam into the monitored water. The beam reflects off particles in the water, and the resulting light intensity is measured by the turbidity sensor's photodetector positioned at 90 degrees to the beam. The light intensity detected by the turbidity sensor is directly proportional to the water's turbidity. The WQ730 uses a second photodetector to compensate for light intensity variations, correct color changes, and minor lens fouling.
For environmental or process monitoring, simply place the turbidity sensor directly in the turbid water and position the monitor. Since the turbidity sensor uses light to detect water turbidity, ensure that the minimum amount of external light is exposed to the monitoring site.
II.US Global Water Turbidity SensorWQ730BFeatures
•4 - 20 mA output
•Marine-grade cable with strain relief
•Field turbidity measurement
•Simple and convenient to use
•Rugged stainless steel and acetal resin sensor housing
