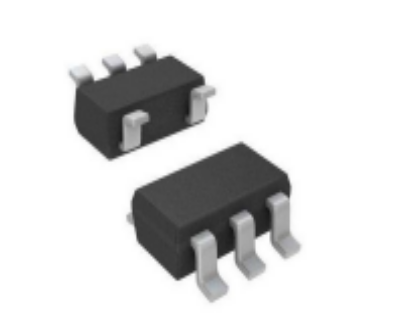

High-Precision Operational Amplifier - MS8630T

Lowest noise auto-zero amplifier
Low offset voltage: 2μV (TYP)
Input offset drift: 0.05μV/℃
Rail-to-rail input and output swing
Operating range from single supply 1.8V to 5.5V
Voltage gain: 126dB (TYP) (operating voltage 5V)
Power supply rejection ratio: 123dB (TYP)
Common Mode Rejection Ratio: 136dB (TYP)
Extremely low input bias current: 11pA
Low operating current: 0.8mA per channel (TYP)
Overload recovery time: 50us (operating voltage 5V)
No external components required
Automotive application certified

Product Model: MS8630T

Product Introduction

MS8628/MS8629/MS8630TBoth feature rail-to-rail output swing and wide bandwidthwide, low noise, auto-zero amplifiers with ultra-low offset, drift, and biascurrent characteristics. It employs1.8VTo5VSingle supply (±0.9VTo±2.5Vdual supply) operation.

MS8628/MS8629/MS8630TWithPreviously expensive self-zeroing or chopperamplifiers, and it also significantly reduces the digital switching noise present in mostchopper-stabilized amplifiers. MS8629Ultra-low offsetVoltage, offset voltage drift, and noise enable the device to maintain over the operating temperature rangedrift near zero, making them suitable for position and pressure sensors, medical devices, and strain gaugesExtremely advantageous for amplifier applications. Many systems can utilizeMS8629Provides railrail-to-rail input and output swing capability, simplifying input bias complexity and enablingto maximize the signal-to-noise ratio.

MS8628/MS8629/MS8630TRated temperature range of-40℃ to125℃ extended industrial temperature range. MS8628Provide5PinSOT-23and8pin narrow bodySOPTwo plastic packages. MS8629Provides standard8pin narrow bodySOPandMSOPTwo plastic packages. MS8630TQuad amplifier14PinTSSOPplastic packaging.

I. Characteristics of High-Precision Operational Amplifier - MS8630T:

II. Application of High-Precision Operational Amplifier - MS8630T：

AutomotiveSensors

Pressure and Position Sensors

Strain Gauge Amplifiers

Medical Instruments

Thermocouple Amplifiers

Precision Current Sensing

Photodiode Amplifiers
