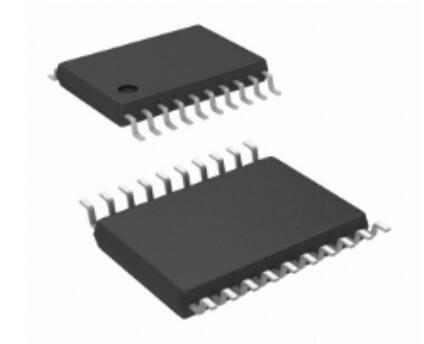

High-Speed Digital-to-Analog Converter Chip - MS5602
1) 8-bit resolution
2) ±0.2% linearity
3) Maximum conversion rate
Typical value 30MHz
Minimum value 20MHz
4) Analog output voltage range: VDD to VDD-1V
5) TTL digital input level
6) 5V single power supply operation
7) Low power consumption: typical value 80mW
Product Introduction
MS5602 is a low-power, ultra-high-speed video digital-to-analog converter. MS5602 converts digital signals to analog signals at sampling rates from DC to 20MHzConverts digital signals to analog signals. Due to high-speed operation, MS5602 is suitable for digital TV, computer video processingPrinciple and radar signal processing and other digital video applications.MS5602 operating temperature is -45℃ to 85℃.
1. Features of High-Speed Digital-to-Analog Converter Chip - MS5602:
1) 8-bit resolution2) ±0.2% linearity
3）relativelyMaximum conversion rate
Typical value 30MHz
relativelyMinimum value 20MHz
4) Analog output voltage range: VDD to VDD-1V
5) TTL digital input level
6) 5V single power supply operation
7) Low power consumption: typical value 80mW
2. Application of High-Speed Digital-to-Analog Converter Chip - MS5602：
Digital TV
Computer video processingPrinciple
Radar signal processing and other digital video applications
