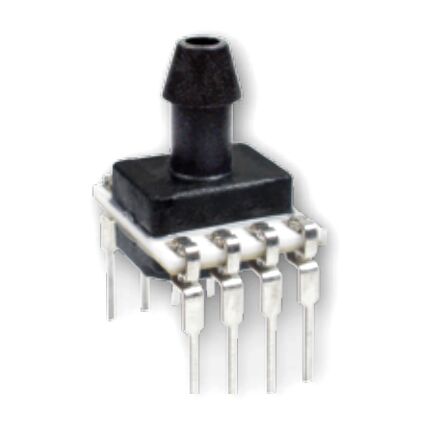

Honeywell High Precision HSC Board Mount Micro Pressure Sensor - HSC Series
The HSC series utilizes a dedicated application-specific integrated circuit (ASIC) on the circuit board to perform comprehensive calibration and temperature compensation for sensor zero, sensitivity, temperature coefficient, and nonlinearity. Calibrated analog output values and digital output values are updated at rates of approximately 1 kHz and 2 kHz, respectively.
Product Introduction
1. Honeywell High-Accuracy HSC Board-Mount Micro Pressure Sensor Description:
TruStability™ HSC Series High Accuracy, Digital I²C Address: 0x28, SMT RR: Dual Axial Barbed Ports, Same Side, Differential Pressure, ±5 inH2O, 3.3 Vdc, No Special Options.
The TruStability™ High Accuracy Silicon Ceramic (SSC) series is a piezoresistive silicon pressure sensor providing a ratiometric analog output or digital output for reading pressure over a specified full scale pressure span and temperature range.
The HSC series utilizes a dedicated application-specific integrated circuit (ASIC) on the circuit board to perform comprehensive calibration and temperature compensation for sensor zero, sensitivity, temperature coefficient, and nonlinearity. Calibrated analog output values and digital output values are updated at rates of approximately 1 kHz and 2 kHz, respectively.
The HSC series is calibrated over a temperature range of 0°C to 50°C [32°F to 122°F]. This sensor features operation on a single 3.3 Vdc or 5.0 Vdc supply.These sensors measure absolute, gauge, or differential pressure. Absolute sensors use vacuum pressure as an internal reference, with output proportional to absolute pressure. Gauge sensors reference atmospheric pressure and provide output proportional to the difference from atmospheric pressure. Differential sensors measure pressure between two pressure ports.
TruStability™ pressure sensors are designed for use with non-corrosive, non-ionic gases such as air and other dry gases. Available options extend the performance of these sensors to pressure ranges above 40 mbar | 4 kPa | 20 inH2O.
All products are designed and manufactured in accordance with ISO 9001 standards.
TwoHoneywell High-Accuracy HSC Board-Mount Micro Pressure Sensor Features:
Honeywell Patented Technology
Multiple Patents Protection
Industry-Leading Long-Term Stability
Total Error Band
Industry-Leading Accuracy
High Burst Pressure
High Operating Pressure Range
Flexibility
Wide Pressure Range
Compliant with IPC/JEDEC J-STD-020D.1 Moisture Sensitivity Level 1
Optional Internal Diagnostics
Energy Saving
Output: Ratiometric Analog; I2C- or SPI-Compatible 14-Bit Digital Output (Minimum 12-Bit Sensor Resolution)
Small Size
RoHS and REACH Compliant
Liquid Media Option
3. Honeywell High-Accuracy HSC Board-Mount Micro Pressure Sensor Applications:
Medical:
Gas Mass Flow Monitor
Anesthesia Machine
Blood Analyzer
Gas Chromatograph
Gas Flow Instruments
Dialysis Machine
Oxygen Concentrator
Pneumatic Control
Ventilator
Sleep Apnea Equipment
Ventilator
Spirometer
Nebulizer
Hospital Room Pressure Control
Industrial:
Barometer
Flow Calibrator
Gas Chromatograph
Gas Flow Instruments
HVAC
Life Science Equipment
Pneumatic Controllers
VAV (Variable Air Volume) Control Systems
HVAC Filter Clog Detection
HVAC Transmitters
Indoor air quality
4. Honeywell High-Accuracy HSC Board-Mount Micro Pressure Sensor Parameters:
| Series Name |
TruStability ®HSC |
|
| Measurement Type |
Differential Pressure |
|
| Power supply voltage |
3.3 Vdc |
|
| Signal Conditioning |
Amplified |
|
| Pressure range |
|
|
| Supply Current |
1.6 mA |
|
| Output |
Digital I²C Address: 0x28 |
|
| Response time |
Maximum Value 1 ms |
|
| Package Type |
SMT |
|
| Accuracy (Best Fit Straight Line) |
±0.25% |
|
| Interface type |
RR: Dual Radial Barbed Ports, Same Side |
|
| 工作温度 |
-20°C to 85°C [-4°F to 185°F] |
|
| Storage temperature |
-40°C to 85°C [-40°F to 185°F] |
