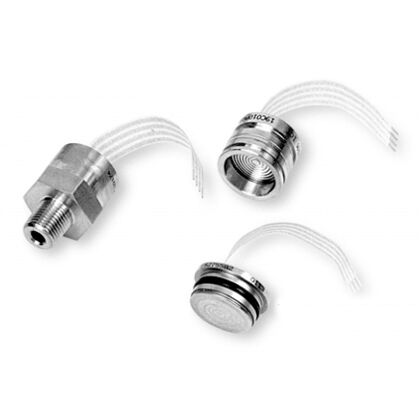

Honeywell Pressure Sensor - 19 mm Series

1. Honeywell Pressure Sensor 19mm Series Description:

19 mm series heavy-duty pressure sensors, compensated, 0 psi to 3 psi, gauge pressure, battery with housing O-ring, 10 Vdc excitation. Honeywell's stainless steel 19C, 19U, and 19 vacuum gauge series sensors are used in pressure applications requiring measurement of harmful media in harsh environments, compatible with 316 stainless steel. This special vacuum gauge series sensor is specifically designed for applications that may be exposed to vacuum.

The 19C series are calibrated and temperature compensated sensors. When in use, constant voltage or power supply can be selected. These sensors feature a variety of pressure fittings and can be used in a wide range of OEM equipment. When OEMs adopt their own dedicated circuit designs, the 19U series is uncompensated. The 19C and 19U series are rugged, reliable sensors widely used for pressure sensing in monitoring corrosive liquids or gases.

2. Honeywell Pressure Sensor 19mm Series Features:

Low Cost

Rugged Isolated Stainless Steel Package - Small Size

Reliable Semiconductor Technology

Calibrated and Temperature Compensated

Absolute and Gauge Pressure

Vacuum Compatible, Isolated Sensor

Absolute Pressure

0 psi to 300 psi, 0 psi to 500 psi

3. Honeywell Pressure Sensor 19mm Series Applications:

Industrial Control

Process Control Systems

Industrial Automation and Flow Control

Pressure Calibrators

4. Honeywell Pressure Sensor 19mm Series Specifications:

Signal Conditioning	Unamplified
Proof Pressure	9 psi
Supply Voltage	15 Vdc
Operating Temperature	-40°C to 125°C [-40°F to 257°F]
Storage Temperature	-40°C to 125°C [-40°F to 257°F]
Temperature Compensation	Yes
Pressure Range	0 psi to 3 psi
Burst Pressure	15 psi
Compensated Temperature Range	0°C to 82°C [32°F to 180°F]
Vibration	10 G at 20 Hz to 2000 Hz
