1. Honeywell Pressure Sensor TSC Series Description:

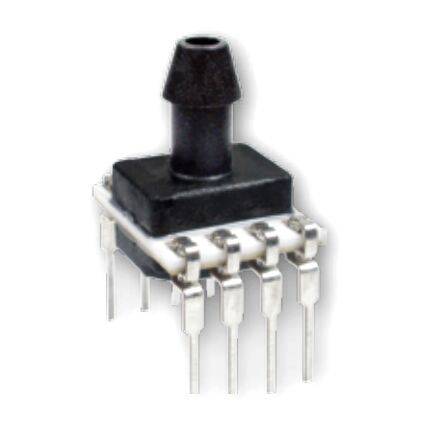

TruStability™ NSC Series, compensated/unamplified, analog, DIP AN: single axial barbed port, gauge pressure, 0 psi to 150 psi.
The Honeywell TruStability® TSC series is a piezoresistive silicon pressure sensor that provides a ratiometric analog output for pressure readings over a specified full-scale pressure span and temperature range.
Temperature Compensated and Unamplified
Temperature compensation makes it easier to integrate the sensor into systems without calibrating the system at different temperatures, while reducing part-to-part variation.
Compensated temperature range is 0°C to 85°C [32°F to 185°F]
Operating temperature range is -40°C to 85°C [-40°F to 185°F]
Measures differential or gauge pressure
Differential pressure sensors measure pressure between two ports. Gauge pressure sensors reference atmospheric pressure and provide an output proportional to the difference from atmospheric pressure.
The TSC series sensors are intended for use with non-corrosive, non-ionic gases such as air. Port 1 can also be used with non-corrosive, non-ionic liquids at pressures above 60 mbar | 6 kPa | 1 psi.
The TSC series offers a variety of packaging styles and mounting options, making it easier for equipment manufacturers to integrate the products into their applications. These sensors provide extremely high-resolution pressure signals. Frequency response is generally limited by the end user's system.
All products are designed and manufactured in accordance with ISO 9001.
2. Honeywell Pressure Sensor TSC Series Features:
Long-term stability
Industry-leading accuracy
Flexibility
Insensitive to mounting orientation
Small size
Repeatability
Supports lean manufacturing
Very low power consumption
Differential and gauge pressure types
Pressure range from ±2.5 mbar to ±10 bar | ±250 Pa to ±1 MPa | ±1 inH2O to ±150 psi
RoHS and ISO9001 compliant
3. Honeywell Pressure Sensor TSC Series Applications:
Medical:
Nebulizers
Spirometers
Patient monitoring equipment
Hospital treatment beds
Hospital gas supply
Oxygen concentrators
Blood analysis
Gas chromatographs
Analytical instruments
Industrial:
Valves
Pumps
Actuators
HVAC transmitters
Automated pneumatic assembly equipment
Pneumatic actuator control systems
Industrial gas supply
Barometers
Gas chromatographs
Analytical instrument sampling systems
4. Honeywell Pressure Sensor TSC Series Specifications:
| Series Name |
TruStability® TSC |
| Signal Conditioning |
Unamplified |
| Pressure Range |
0 psi to 150 psi |
| Package Type |
DIP |
| Operating Temperature |
-40°C to 85°C [-40°F to 185°F] |
| Storage Temperature |
-40°C to 85°C [-40°F to 185°F] |
| Compensated Temperature Range |
0°C to 85°C [32°F to 185°F] |
| Output |
Analog |
| Interface Type |
AN: Single axial barbed port |
| Accuracy (Best Fit Straight Line) |
±0.15 %FSS |
| Media Compatibility |
Non-corrosive, non-ionic gases; Port 1 can also be used with non-corrosive, non-ionic liquids at pressures above 60 mbar | 6 kPa | 1 psi. |
