Smart color sensor High-precision online water quality monitoring RS485 Modbus with self-cleaning brush IP68 waterproof - AMT-SD300
Technical parameters
Model: AMT-SD300
Measurement principle: Optical absorption method
Measurement range: (0-500) Hazen, (0-500) NTU
Measurement accuracy: ±2%FS
Resolution: 0.5 Hazen
Measurement wavelength: 470nm, 546nm
Communication interface: RS485, standard Modbus protocol
Dimensions: D32mm, L185mm, cable 3 meters (customizable)
Operating environment: (5-35)°C, (0-3) bar
Operating voltage: 12V/24V DC
Product Introduction
Intelligent-chromaticity-sensor-01
70908001
AMT-SD300

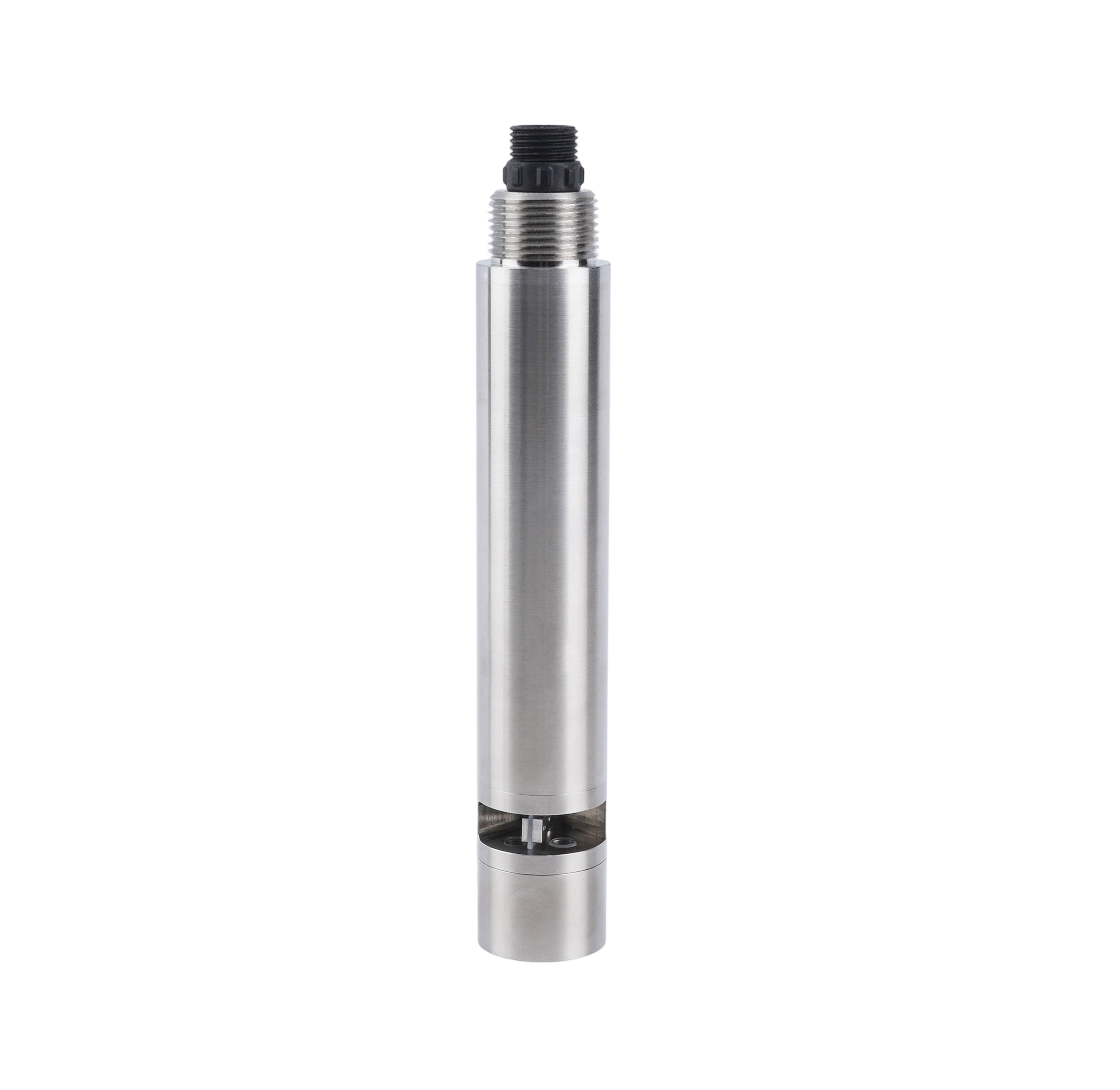

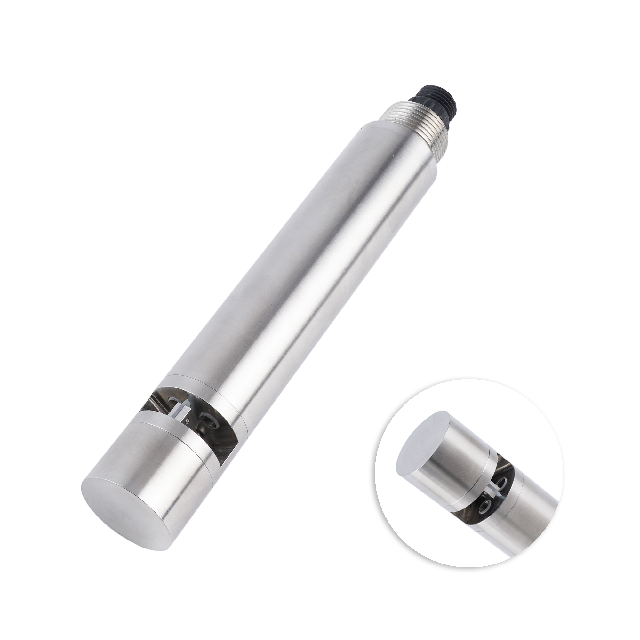

Smart color sensor (AMT-SD300)
is a smart color sensor with RS485 communication interface and standard Modbus protocol, equipped with a self-cleaning brush
electrode. It simultaneously measures the absorbance of water at 470 nm and 546 nm, and can convert it into color value, quickly reflecting changes in water quality. This sensor
Based on coherent detection technology, it has advantages such as high precision, good stability, strong anti-interference, no pretreatment required, and fast measurement. Dual-beam measurement effectively
Reduces turbidity interference; comes with a self-cleaning brush to avoid fouling.
◇ No reagents required, pollution-free, economical and environmentally friendly
◇ Compact size, easier installation, and can perform continuous online water quality monitoring
◇ Can measure parameters such as color, turbidity, and temperature
◇ Automatic compensation for turbidity interference

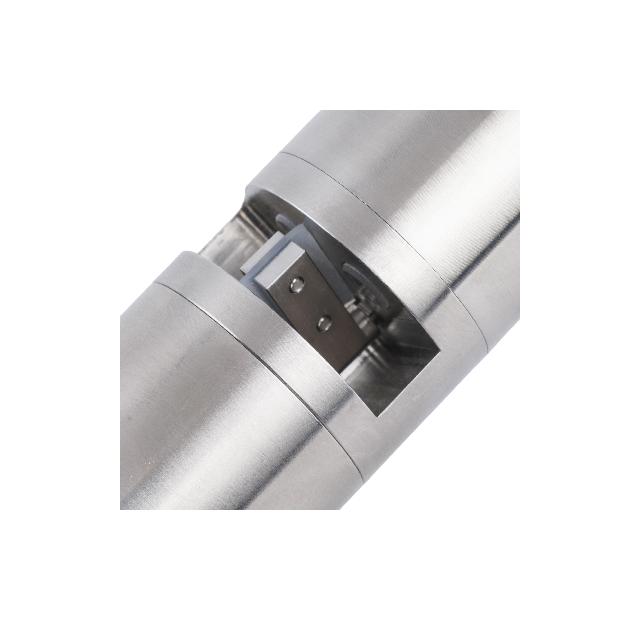

◇ Equipped with cleaning brush to prevent biological fouling
◇ Low drift, fast response, more accurate measurement
◇ Excellent stability even during long-term monitoring
◇ Maintenance-free, long service life, low operating cost
◇ Digital sensor, RS-485 interface, Modbus/RTU protocol
◇ Optional 4-20mA current output
◇ Low power consumption design, anti-interference design
Technical parameters
Model: AMT-SD300
Measurement principle: Optical absorption method
Measurement range: (0-500) Hazen, (0-500) NTU
Measurement accuracy: ±2%FS
Resolution: 0.5 Hazen
Measurement wavelength: 470nm, 546nm
Communication interface: RS485, standard Modbus protocol
Dimensions: D32mm, L185mm, cable 3 meters (customizable)
Operating environment: (5-35)°C, (0-3) bar
Operating voltage: 12V/24V DC
Main Application Areas
- Drinking Water Treatment — Monitor color levels in raw and treated water to ensure compliance with safety standards.
- Wastewater Treatment — Track color changes in effluent to optimize treatment processes and detect anomalies.
- Industrial Process Water — Ensure consistent water quality in manufacturing processes where color is a critical parameter.
- Environmental Monitoring — Assess natural water bodies for color variations indicative of pollution or algal blooms.
