Industrial-grade smart ORP electrode with dual salt bridge design, PT1000 temperature compensation, accuracy ±0.1℃ - AMT-ORP300
Measurement principle: Platinum/glass electrode method
Measuring range: -1500 to +1500 mV
Measurement accuracy: 1 mV
Resolution: ±6mV
Operating temperature: 0-65°C
Operating pressure: <0.1 MPa
Power supply: 12~24V DC
Signal output: RS-485 (Modbus/RTU)
Housing material: POM
Installation method: Immersion installation, 34" NPT pipe thread
Cable length: 5 meters, other lengths customizable
Calibration method: One-point calibration
Power consumption: 0.2W@12V
Protection rating: IP68
Dimensions: D30mm, L185mm
Product Introduction
Intelligent-ORP-water-quality-sensor-01
70902013
AMT-ORP300

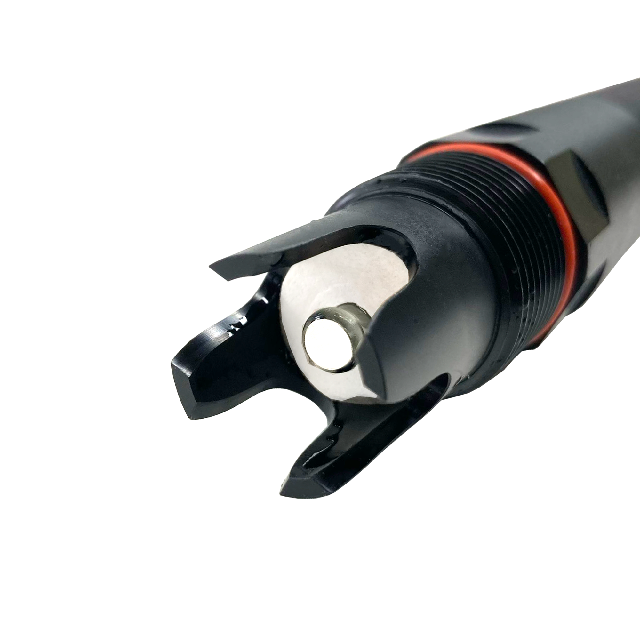

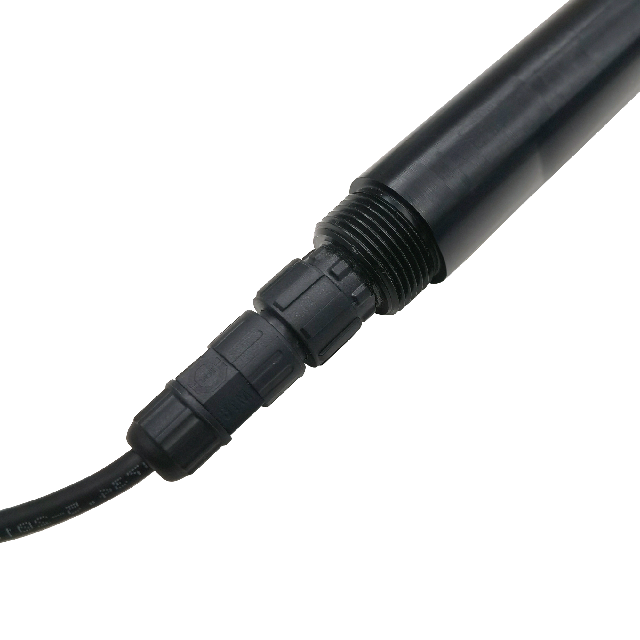

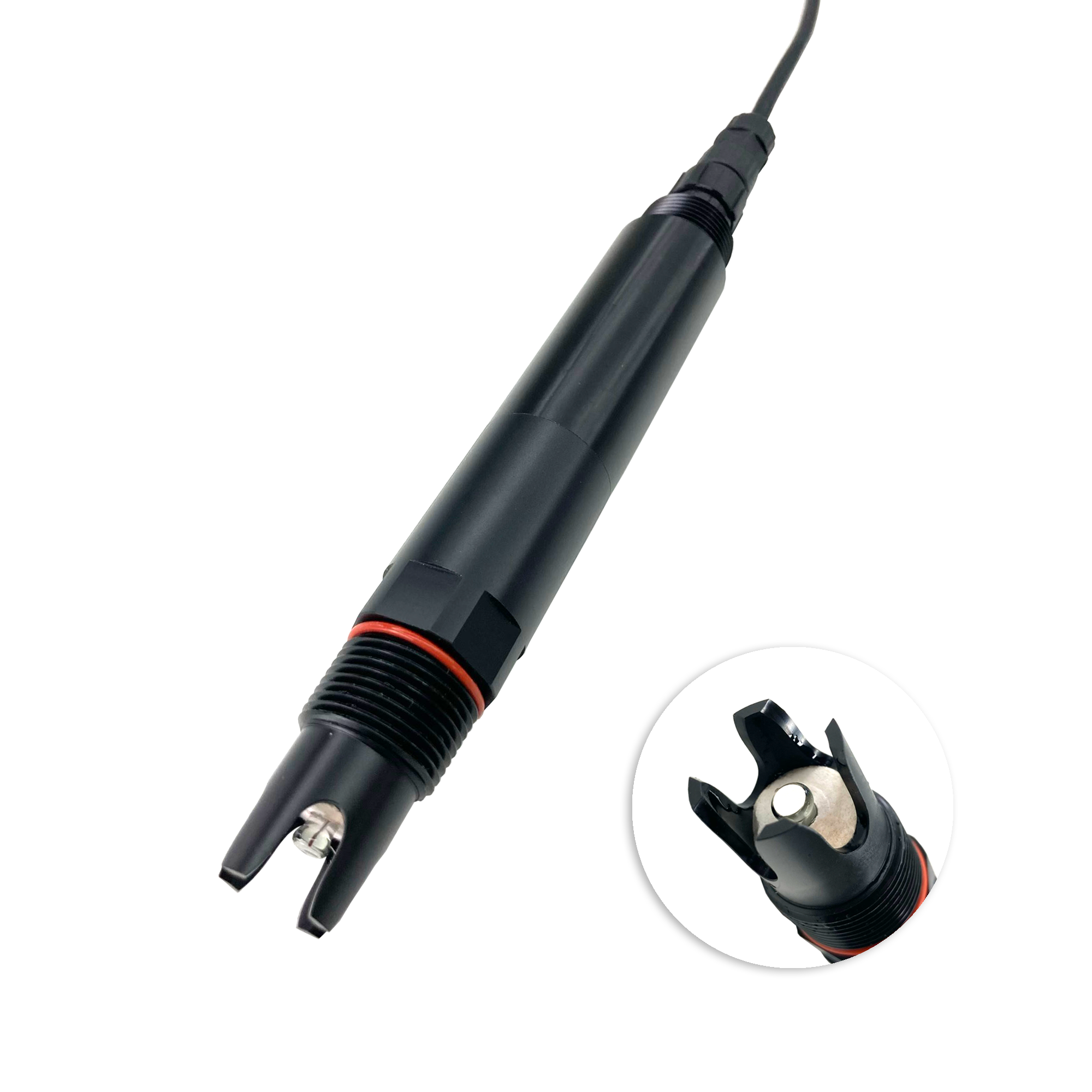

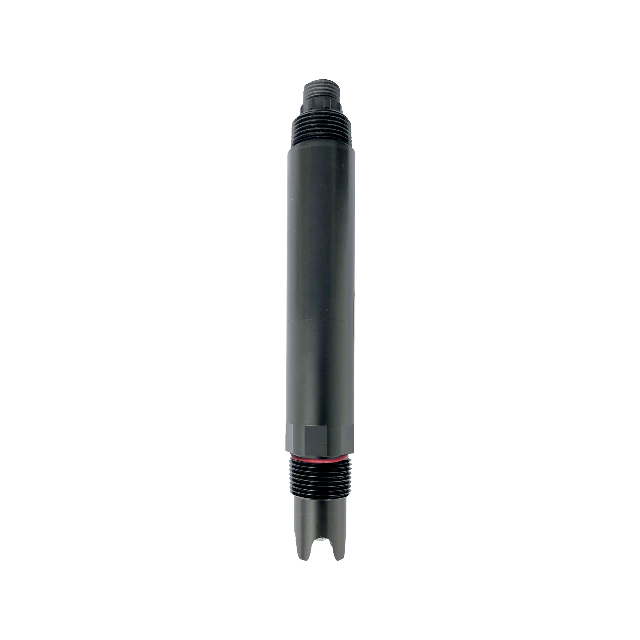

Smart ORP sensor (AMT-ORP300)
It is a smart water quality sensor that uses RS485 communication interface and standard Modbus protocol. The sensor
The sensor housing is made of corrosion-resistant material, with an imported ORP glass electrode, built-in Pt1000 temperature sensor and compensation algorithm, suitable for various harsh working
working environment. This sensor has advantages such as high accuracy, long lifespan, and low drift. It is widely used in surface water, municipal sewage, industrial wastewater, sewage treatment
treatment, industrial processes in water plants, aquaculture, and other industries.
Model: AMT-ORP300
Measurement principle: Platinum/glass electrode method
Measuring range: -1500 to +1500 mV
Measurement accuracy: 1 mV
Resolution: ±6mV
Operating temperature: 0-65°C
Operating pressure: <0.1 MPa
Power supply: 12~24V DC
Signal output: RS-485 (Modbus/RTU)
Housing material: POM
Installation method: Immersion installation, 34" NPT pipe thread
Cable length: 5 meters, other lengths customizable
Calibration method: One-point calibration
Power consumption: 0.2W@12V
Protection rating: IP68
Dimensions: D30mm, L185mm
Main Application Areas
- Wastewater Treatment — Monitoring oxidation-reduction potential in municipal and industrial wastewater treatment processes to ensure optimal chemical dosing and treatment efficiency.
- Surface Water Monitoring — Continuous ORP measurement in rivers, lakes, and reservoirs to assess water quality and detect pollution events.
- Industrial Process Control — Used in chemical, pharmaceutical, and food processing industries to monitor and control redox reactions in process streams.
- Aquaculture — Maintaining proper ORP levels in fish farming and aquaculture systems to ensure healthy aquatic environments.
