Sewage Treatment Intelligent ORP Water Quality Sensor Online Monitoring Oxidation-Reduction Potential - AMT-ORP300
Measurement principle: Platinum/glass electrode method
Measuring range: -1500 to +1500 mV
Measurement accuracy: 1 mV
Resolution: ±6mV
Operating temperature: 0-65°C
Operating pressure: <0.1 MPa
Power supply: 12~24V DC
Signal output: RS-485 (Modbus/RTU)
Housing material: POM
Installation method: Immersion installation, 34" NPT pipe thread
Cable length: 5 meters, other lengths customizable
Calibration method: One-point calibration
Power consumption: 0.2W@12V
Protection rating: IP68
Dimensions: D30mm, L185mm
Product Introduction
Intelligent-ORP-water-quality-sensor-01
70902013
AMT-ORP300

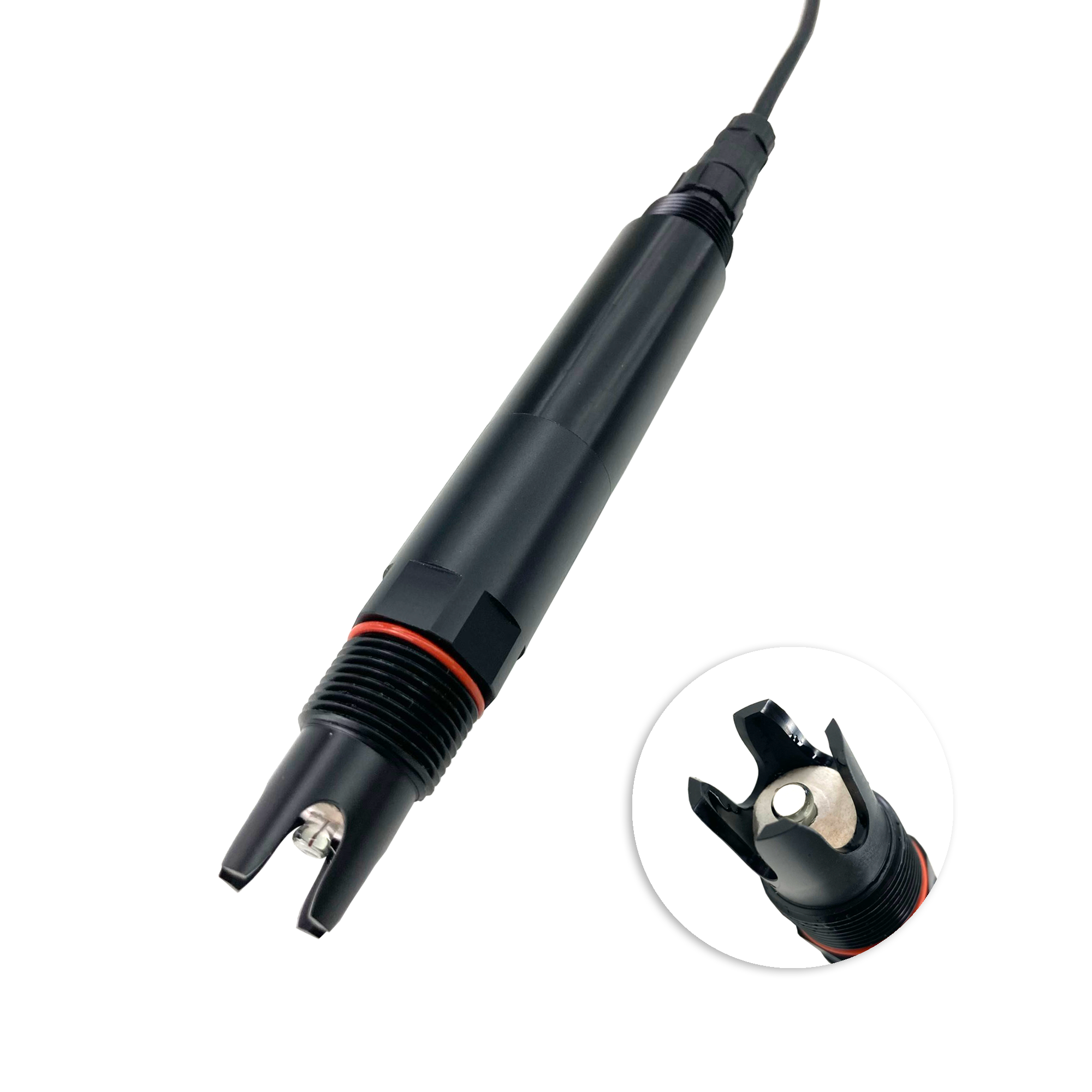

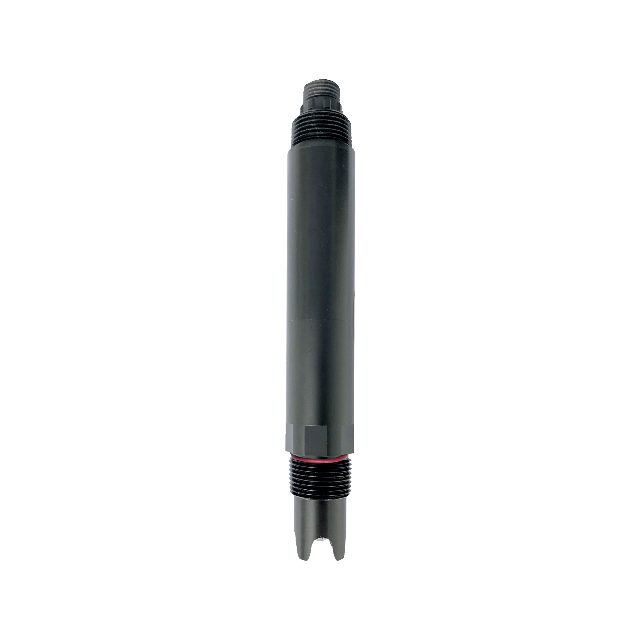

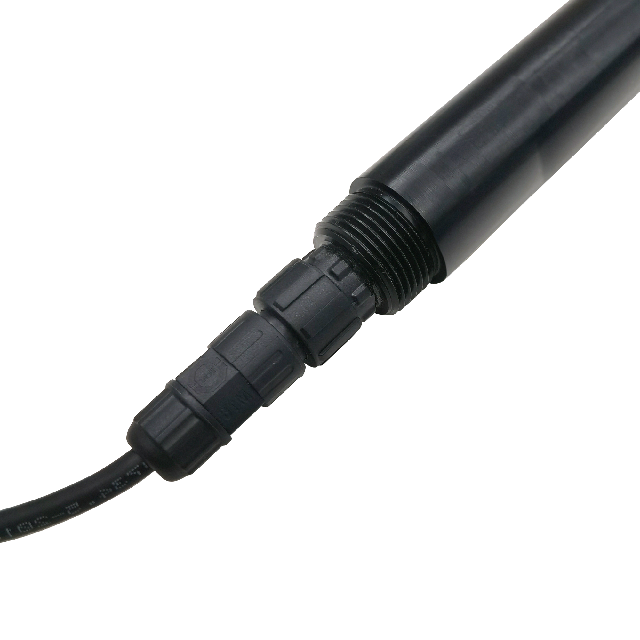

Intelligent Online ORP Sensor (AMT-ORP300)
It is a smart water quality sensor that uses RS485 communication interface and standard Modbus protocol. The sensor

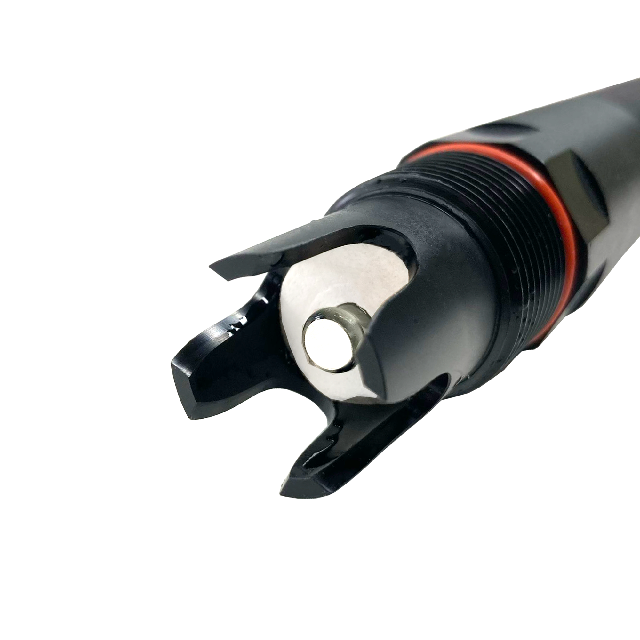

The sensor housing is made of corrosion-resistant material, with an imported ORP glass electrode, built-in Pt1000 temperature sensor and compensation algorithm, suitable for various harsh working
working environment. This sensor has advantages such as high accuracy, long lifespan, and low drift. It is widely used in surface water, municipal sewage, industrial wastewater, sewage treatment
treatment, industrial processes in water plants, aquaculture, and other industries.
Model: AMT-ORP300
Measurement principle: Platinum/glass electrode method
Measuring range: -1500 to +1500 mV
Measurement accuracy: 1 mV
Resolution: ±6mV
Operating temperature: 0-65°C
Operating pressure: <0.1 MPa
Power supply: 12~24V DC
Signal output: RS-485 (Modbus/RTU)
Housing material: POM
Installation method: Immersion installation, 34" NPT pipe thread
Cable length: 5 meters, other lengths customizable
Calibration method: One-point calibration
Power consumption: 0.2W@12V
Protection rating: IP68
Dimensions: D30mm, L185mm
Main Application Areas
- Wastewater Treatment — Monitoring oxidation-reduction potential in municipal and industrial wastewater treatment processes to optimize chemical dosing and ensure effective treatment.
- Surface Water Monitoring — Continuous monitoring of ORP levels in rivers, lakes, and reservoirs to assess water quality and detect pollution events.
- Industrial Process Water — Used in industrial processes where oxidation-reduction potential control is critical, such as in chemical, pharmaceutical, and food processing industries.
- Aquaculture — Monitoring ORP in aquaculture systems to maintain optimal water conditions for fish and shrimp health.
