Industrial Wastewater Intelligent ORP Sensor Corrosion-Resistant Suitable for Harsh Environments - AMT-ORP300
Measurement principle: Platinum/glass electrode method
Measuring range: -1500 to +1500 mV
Measurement accuracy: 1 mV
Resolution: ±6mV
Operating temperature: 0-65°C
Operating pressure: <0.1 MPa
Power supply: 12~24V DC
Signal output: RS-485 (Modbus/RTU)
Housing material: POM
Installation method: Immersion installation, 34" NPT pipe thread
Cable length: 5 meters, other lengths customizable
Calibration method: One-point calibration
Power consumption: 0.2W@12V
Protection rating: IP68
Dimensions: D30mm, L185mm
Product Introduction
Intelligent-ORP-water-quality-sensor-01
70902013
AMT-ORP300

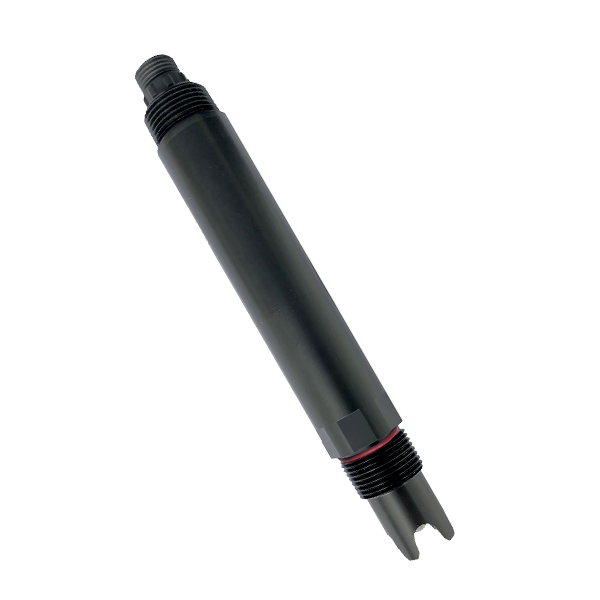

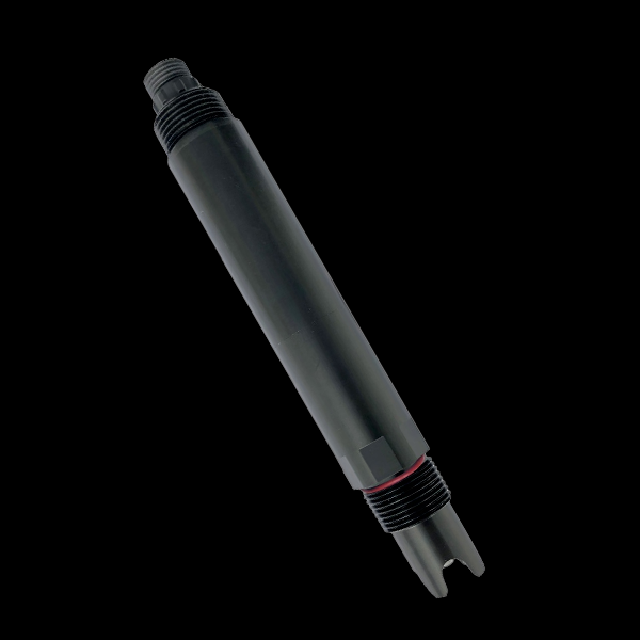

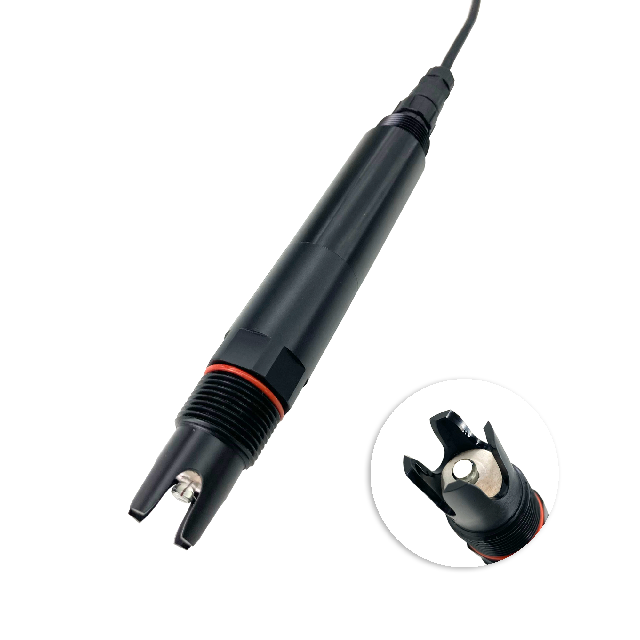

Intelligent Online ORP Sensor (AMT-ORP300)
It is a smart water quality sensor that uses RS485 communication interface and standard Modbus protocol. The sensor
The sensor housing is made of corrosion-resistant material, with an imported ORP glass electrode, built-in Pt1000 temperature sensor and compensation algorithm, suitable for various harsh working
working environment. This sensor has advantages such as high accuracy, long lifespan, and low drift. It is widely used in surface water, municipal sewage, industrial wastewater, sewage treatment
treatment, industrial processes in water plants, aquaculture, and other industries.
Model: AMT-ORP300
Measurement principle: Platinum/glass electrode method
Measuring range: -1500 to +1500 mV
Measurement accuracy: 1 mV
Resolution: ±6mV
Operating temperature: 0-65°C
Operating pressure: <0.1 MPa
Power supply: 12~24V DC
Signal output: RS-485 (Modbus/RTU)
Housing material: POM
Installation method: Immersion installation, 34" NPT pipe thread
Cable length: 5 meters, other lengths customizable
Calibration method: One-point calibration
Power consumption: 0.2W@12V
Protection rating: IP68
Dimensions: D30mm, L185mm
Main Application Areas
- Wastewater Treatment — Monitoring ORP levels in industrial and municipal wastewater to optimize treatment processes.
- Surface Water Monitoring — Assessing the oxidation-reduction potential of rivers, lakes, and reservoirs for environmental monitoring.
- Industrial Process Control — Ensuring proper chemical reactions in industrial processes by monitoring ORP in real-time.
- Aquaculture — Maintaining optimal water quality in aquaculture systems by tracking ORP levels.
