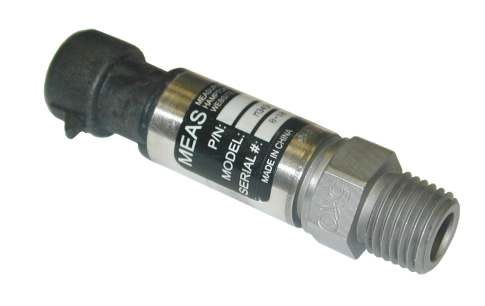

Swiss Intersema Pressure Sensor - MSP300 Series

1. MSP300 Series Pressure Sensor Product Description:

MSP300 Series Pressure SensorSets a new performance-to-price benchmark for low-cost, high-volume commercial and industrial applications. Suitable for gas and liquid pressure measurement, including sewage, steam, mildly corrosive liquids and gases.

The pressure cavity of the MSP300 is machined from a single piece of 17-4PH stainless steel, with a standard 1/4 NPT pressure port, all-metal sealed, leak-free. Due to no O-rings, no welds, and no direct contact with the measured media, the sensor's stability and durability are excellent.

MEAS's unique micro-fused technology originates from aerospace applications, using high-temperature glass to fuse micro-machined silicon piezoresistive strain gauges onto a stainless steel isolation diaphragm. The glass bonding process avoids the effects of temperature, humidity, mechanical fatigue, and media on adhesives and materials, thereby improving the sensor's long-term stability in industrial environments and avoiding the P-N junction effects seen in traditional micro-machining processes.

The product is especially suitable for medium and high-volume applications for OEM customers, and standard products can be widely used for various purposes. Meanwhile, to meet the requirements of batch applications, our engineering team is always ready to customize special products for customers.

2. MSP300 Series Pressure Sensor Features:
(1) Accuracy: 1% FS
(2) Supply Voltage: 10~30 VDC
(3) Pressure Range: Up to 0~10000 PSI
(4) Temperature Compensation: 0~55°C
(5) Various Pressure Ports Available
(6) Output Signals: 0~100 mV, 0.5~4.5 V, 1~5 V, 4~20 mA
(7) Short Lead Time, High Cost-Effectiveness

3. MSP300 Series Pressure Sensor Product Features
● Rugged, Durable, Low Cost
● Single-Piece Stainless Steel Construction
● Pressure Range Up to 10,000 PSI (700 BAR or 70 MPa)
● Millivolt or Amplified Output Signals
● High Accuracy
● Wide Operating Temperature Range

4. MSP300 Series Pressure Sensor Applications
● Pumps and Compressors
● Hydraulic and Pneumatic Systems
● Energy and Water Treatment Systems
● Automatic Monitoring Systems
● Refrigeration Equipment (Freon or Ammonia)
● Agricultural Equipment
