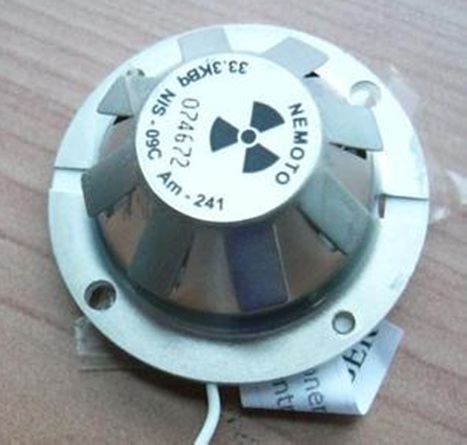

Ionization Smoke Sensor - NIS-09C
Detection method: Ionization type, single source, dual chamber.
Radioactive element: Americium-241
Radioactivity: Average 33.3KBq = 0.9uCi (29K - 37KBq)
Supply voltage: DC 6.0-18.0V, max 24V
Temperature: 0-50°C, max -10 to 60°C
Humidity: <95%
Storage temperature: -25 to 80°C, humidity <95%
Dimensions: 22.0×42, weight: 12g
Product Introduction
I.Ionization Smoke SensorNIS-09C Product Description:
The NIS-09C is an ionization smoke sensor that uses a tiny amount of radioactive Americium-241 internally. However, the sensor itself is covered by a metal shell, ensuring no radiation leakage, so users can use it with confidence. In clean air, the output balance voltage has good consistency, and assembling detectors does not require individual measurement of the ionization chambers, facilitating automated production. This ionization chamber smoke sensor is a new type of sensor carefully designed specifically for smoke detection.
II. Ionization Smoke Sensor NIS-09C Features:
- Detection method: Ionization type, single source, dual chamber.
- Radioactive element: Americium-241
- Radioactivity: Average 33.3KBq = 0.9uCi (29K - 37KBq)
- Supply voltage: DC 6.0-18.0V, max 24V
- Temperature: 0-50°C, max -10 to 60°C
- Humidity: <95%
- Storage temperature: -25 to 80°C, humidity <95%
- Dimensions: 22.0×42, weight: 12g
III. Ionization Smoke Sensor NIS-09C Typical Characteristics:
- Supply voltage: DC 9V
- Output voltage: 5.6+0.4V
- Current consumption: 27+3pA
- Sensitivity: 0.6+0.1V
