Product Introduction

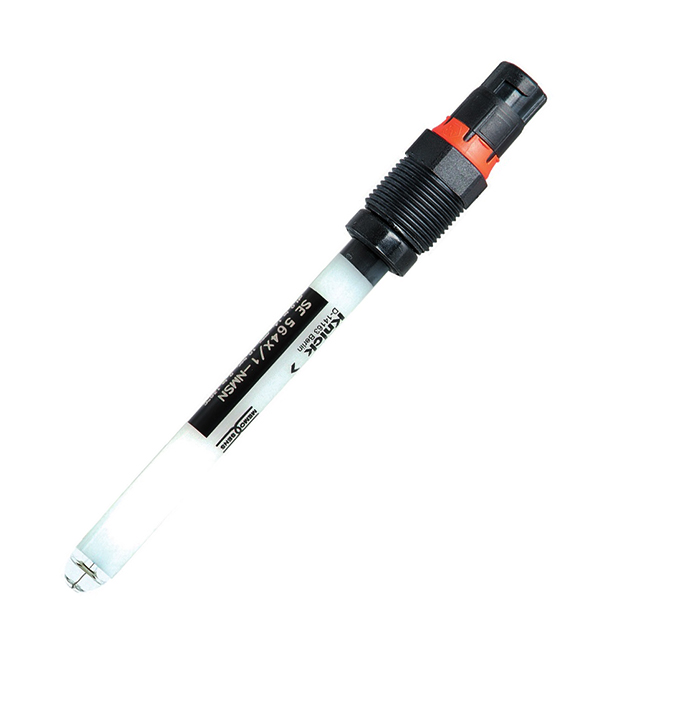

ORP Sensor SE-564-ORP Description
ORP Sensor SE-564-ORPHigh-load ORP electrode, designed for highly polluted media and pressure fluctuation conditions. The reference system uses advanced polymer electrolyte, can be used in sulfide-containing media, and has good long-term stability. It is designed for high-pressure applications and pressure fluctuation conditions. In wastewater containing solid impurities, the double-hole junction also prevents clogging of the reference system.
ORP Sensor SE-564-ORP Applications
Processing industry, chemical, industrial wastewater
ORP Sensor SE-564-ORP Technical Specifications
ORP：-1500mV ~ +1500mV
Temperature: 0 ~ 130 °C
Pressure: up to 10 bars
Temperature Detection NTC 30 kOhm
Sensor Material: Platinum
Reference System: Silver/Silver Chloride, Polymer Electrolyte
Junction: Hole (2)
Length: 120 mm / 225 mm
Sensor Cap: Memosens
ATEX Certification: II 1 G Ex ia IIC T3/T4/T6
