Product Introduction

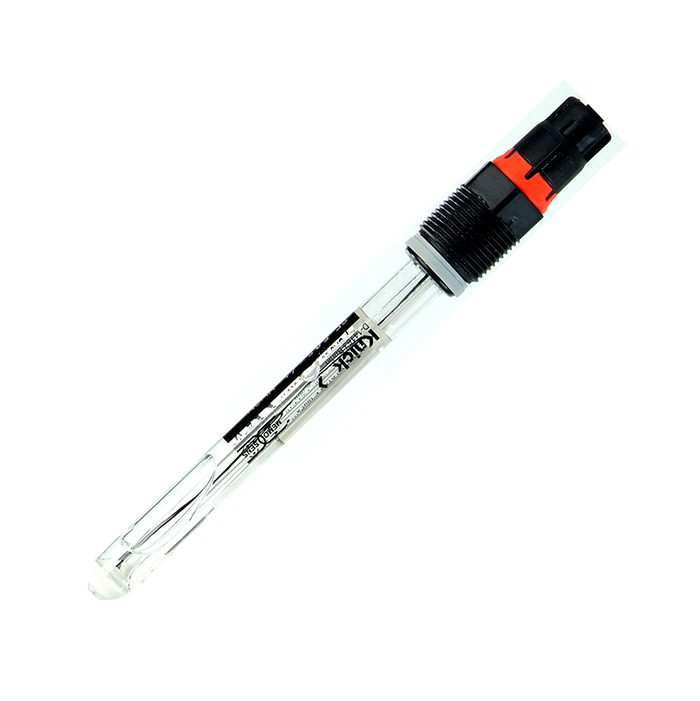

ORP Sensor SE-565-ORP Description
The SE-565-ORP sensor is a low-maintenance, pressure-resistant sensor. The polymer reference system contacts the process medium through a ceramic junction. The sensor is made of platinum. The SE-565-ORP sensor is designed for simultaneous measurement of ORP and temperature in industrial processes. Suitable for steam sterilization, its reference system was developed for food and pharmaceutical applications.
ORP Sensor SE-565-ORP Applications
Hygienic and disinfection applications, food and pharmaceutical industries, biotechnology.
ORP Sensor SE-565-ORP Technical Specifications
ORP：-1500mV ~ +1500mV
Temperature: 0 ~ 135 °C
Pressure: up to 6 bars
Temperature Detection: NTC 30 kΩ
Sensor Material: Platinum
Reference System: Silver/Silver Chloride, Polymer Electrolyte
Junction: Ceramic (1x)
Length: 120 mm / 225 mm
Sensor Cap: Memosens
ATEX Certification: II 1 G Ex ia IIC T3/T4/T6
