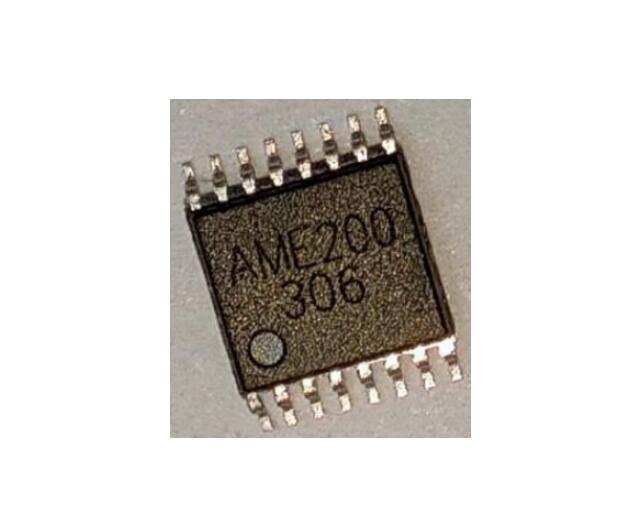

Magnetic Rotary Encoder Chip - AME200

The AME200 is a new-generation magnetic encoder chip developed by Zhongke Alpha based on advanced AMR technology and high-performance, dedicated ASIC signal processors. The chip internally contains two pairs of differential Wheatstone bridges placed at 45° to each other, forming AMR sensor elements that sense the rotating magnetic field component in the X-Y plane of the chip. As the magnetic field angle changes, it outputs two sinusoidal voltage signals with a 90° phase difference. After amplification, compensation, and calculation by the subsequent dedicated circuit, the angle value is obtained. Finally, specific algorithms output ABZ signals, or UVW, PWM, SDI signals, which can be programmed (configured) and read for the current angle as needed. Users can select output modes and parameters according to their needs, specify them when ordering, or configure them via the I2C interface.

I. Magnetic Rotary Encoder Chip -AME200 Features:

Based on advanced AMR angle sensor and high-performance integrated circuit ASIC processing chip
Non-contact angle measurement (0~360°) or incremental encoder output
Multiple output modes: ABZ, UVW, PWM, SDI (select one); I2C communication
ABZ output resolution can be arbitrarily selected (256, 512, 1024, 250, 500, 1000, etc.)
UVW output supports 1 to 16 pole pairs
PWM output frequency is programmable
SDI output pulse count is programmable
I2C communication, real-time reading of current angle; chip parameters configurable
TSSOP-16 package, RoHS compliant

II. Magnetic Rotary Encoder Chip -AME200 Applications:
