Product Introduction

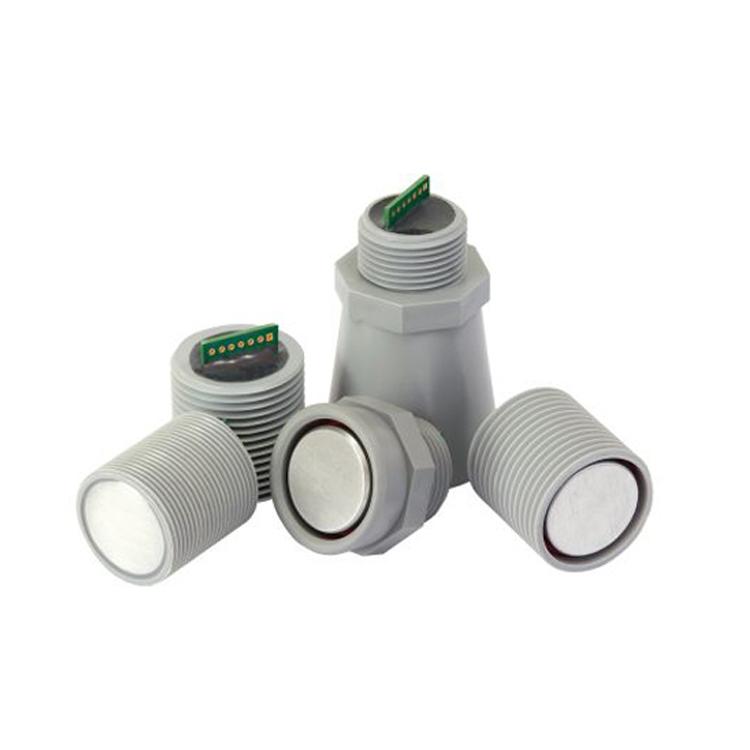

I. IP67Waterproof Ultrasonic Liquid Level SensorMB7589 Description
The MB7589 sensor features a self-cleaning function. It can gently heat the surface of the sensor, atomizing any moisture/condensation on the transducer surface. In various applications that encounter condensation issues, many of these applications require self-cleaning, and the MB7589 is specifically designed for these applications. For example, in fuel tanks or water tanks, on clear or cold nights, this makes the sensor hardware colder than the surrounding environment. Condensation or frost will form on the surface of the exposed sensor hardware. Water and frost can hinder sensor operation; these targets (on the sensor surface) will be detected or cause reflections, reducing sensor sensitivity and making detection data inaccurate. The purpose of the self-cleaning operation is to prevent accumulation and eliminate moisture and frost on the sensor surface.
Additionally, the MB7589 has the same performance asMB7360the standard model, but in harsh environments, the MB7589 performs better.
II. Waterproof Ultrasonic Liquid Level Sensor MB7589Features and Benefits:
IP67 dustproof and waterproof standard packaging
Small size, low-cost solution
High resolution up to 1mm
Multiple output modes, including pulse width, analog voltage, and serial port
Ultra-low power consumption suitable for battery-powered systems
Anti-condensation and anti-frost
Measuring distance up to 5 meters
III. Waterproof Ultrasonic Liquid Level Sensor MB7589Applications and Usage:
Material level detection
Liquid tank level detection
IV. Waterproof Ultrasonic Liquid Level Sensor MB7589 Product Parameters:
1. Detection range: 0-5m
2. Resolution: 1mm
3. Supply current: 34-68mA
4. Operating voltage: 2.7V-5.5V
5. Ultrasonic ranging frequency: 42kHz
6. Sampling rate: 0.58Hz
7. Operating temperature: -40°C ~ +65°C
8. Output modes: analog output, pulse width output, RS232 output
9. Operating modes: free-running mode and external trigger mode
