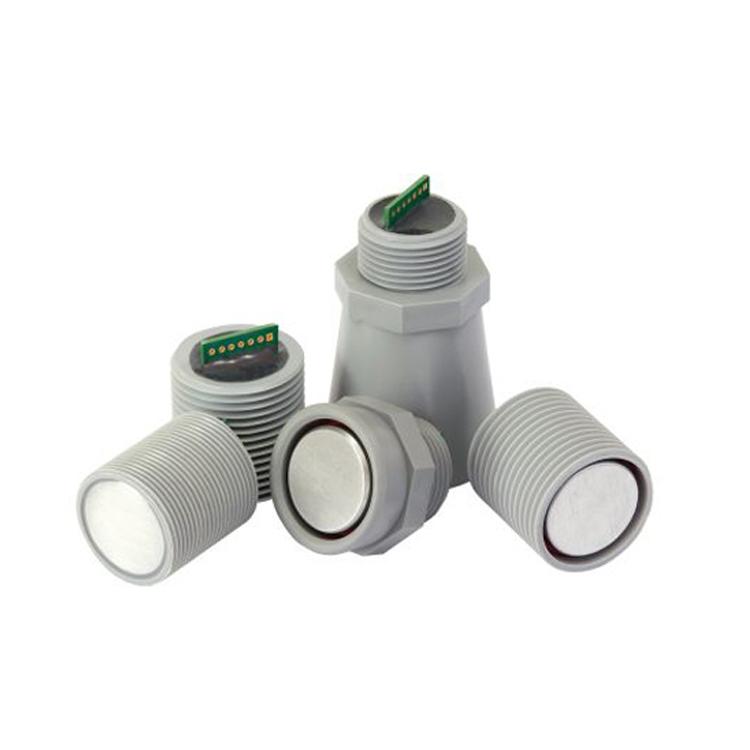

MaxBotix Drone Ultrasonic Sensor - MB7052

I.Drone Ultrasonic SensorMB7052 Description:

The drone ultrasonic sensor MB7052 is an ultrasonic sensor with an IP67 protection rating, which can prevent dust inhalation and withstand short-term immersion. It is encapsulated in PVC material and has a certain degree of corrosion resistance. In outdoor environments with clutter interference, it can effectively remove clutter and detect the distance information of the target. The sensor has a resolution of up to 1 cm and can measure distances up to 7.65 meters. Therefore, it is a low-power product suitable for outdoor environments, such as drone systems. At the same time, it is also widely used in battery-powered IoT smart devices.

II. Drone Ultrasonic Sensor MB7052 Features and Benefits:

Accurate and narrow beam angle
IP67 dustproof and waterproof standard packaging
Ultra-low power consumption suitable for battery-powered systems
Multiple output modes
Excellent performance in detecting large targets in the presence of clutter
Sensor directly reports distance readings
Real-time calibration, resistant to acoustic and electronic noise
Can measure distances up to 7.65 meters

III. Drone Ultrasonic Sensor MB7052 Applications:

Autonomous navigation

Environments with acoustic and electrical noise

Level measurement

Tank level measurement

UAV drones

IV. Drone Ultrasonic Sensor MB7052Product Parameters
1. Detection range: 0-7.65m
2. Resolution: 1cm
3. Supply current: 2.1-3.4mA
4. Operating voltage: 3V-5.5V
5. Ultrasonic ranging frequency: 42kHz
6. Sampling rate: 6.6Hz
7. Operating temperature: -40°C ~ +65°C (+85°C limit)
8. Output modes: analog output, pulse width output, RS232 output
9. Operating modes: free-running mode and external trigger mode
