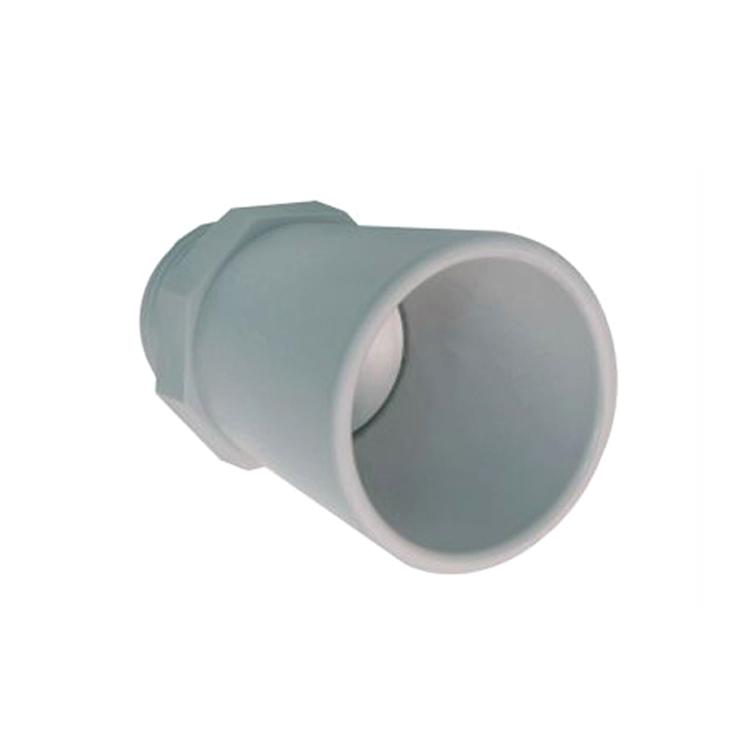

MaxBotix Ultrasonic Liquid Level Sensor - MB7066

1. Description of Ultrasonic Liquid Level Sensor MB7066:

The ultrasonic liquid level sensor MB7066 is a compact yet rugged weather-resistant ultrasonic sensor. It complies with IP67 protection rating, preventing dust ingress and allowing brief immersion. With high output acoustic power, continuously variable gain, real-time automatic calibration, and excellent noise suppression algorithms, it effectively achieves noise-free distance readings. Even in the presence of many acoustic or electronic noise sources, stable and reliable distance readings can be obtained. It can measure distances up to 10 meters, making it well-suited for long-distance detection and water tank level detection.

2. Features of Ultrasonic Liquid Level Sensor MB7066:

Accurate and narrow beam angle
1cm resolution
IP67 dustproof and waterproof standard packaging
Ultra-low power consumption suitable for battery-powered systems
Compact size, multiple output modes
Small and lightweight, designed for easy integration into your projects or products
Fast measurement cycle
Can measure distances up to 10 meters

3. Applications of Ultrasonic Liquid Level Sensor MB7066:

Robot ranging sensors

Autonomous navigation

Distance measurement

Remote object detection

Industrial sensors

4. Product Parameters of Ultrasonic Liquid Level Sensor MB7066:
1. Detection range: 0-10m
2. Resolution: 1cm
3. Supply current: 2.1-3.4mA
4. Operating voltage: 3V-5.5V
5. Ultrasonic ranging frequency: 42kHz
6. Sampling rate: 10Hz
7. Operating temperature: -40°C ~ +65°C (+85°C limit)
8. Output modes: analog output, pulse width output, RS232 output
9. Operating modes: free-running mode and external trigger mode

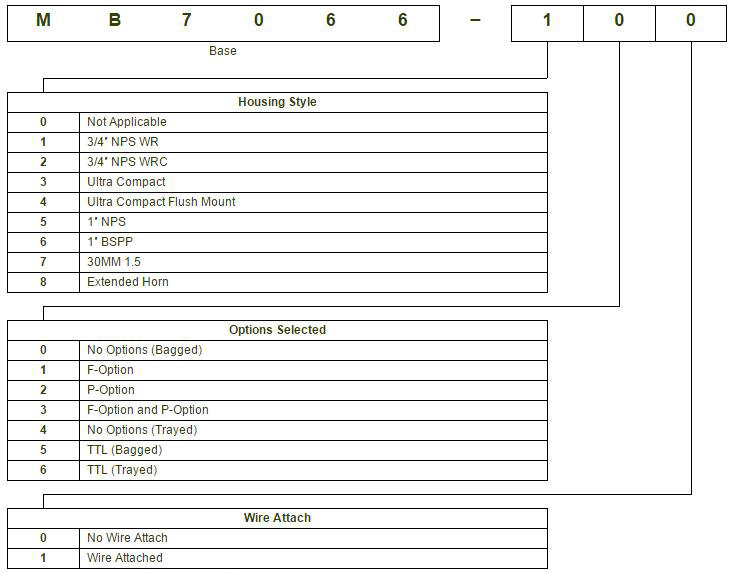

5.Ultrasonic Liquid Level SensorMB7066 Selection Guide:

All part numbers are a six-character combination followed by a dash and a three-digit product code. Please refer to the table below for more information on the three-digit product codes.
