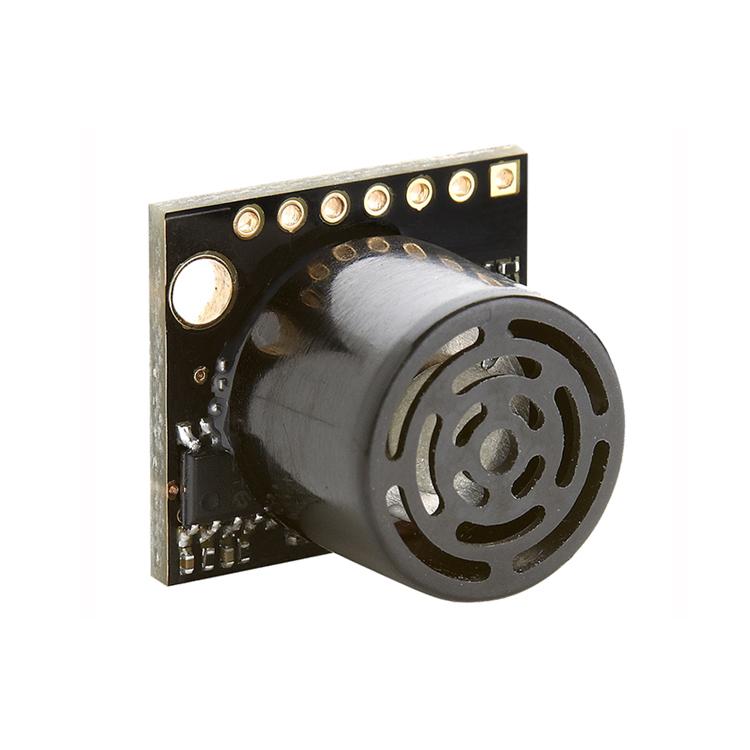

MaxBotix Ultrasonic Obstacle Avoidance Sensor - MB1043 MB1033
Small size, low-cost solution
High resolution up to 1mm
Measuring range up to 5 meters
Multiple output options including pulse width, analog voltage, and serial
Low power consumption suitable for battery-powered systems, only 2.5mA at 3.3V
Product Introduction
1. Description of Ultrasonic Obstacle Avoidance Sensors MB1043 MB1033:
Ultrasonic Obstacle Avoidance SensorThe MB1043 MB1033 is a high-resolution (1mm), high-precision, low-power ultrasonic sensor. Its design not only handles interference noise and has anti-noise capability, but also compensates for sensitivity for targets of different sizes and varying supply voltages. It also features standard internal temperature compensation, making the measured distance data more accurate. For indoor environments, it is an excellent low-cost solution!
2. Ultrasonic Obstacle Avoidance SensorMB1043MB1033 Features:
Small size, low-cost solution
High resolution up to 1mm
Measuring range up to 5 meters
Multiple output options including pulse width, analog voltage, and serial
Low power consumption suitable for battery-powered systems, only 2.5mA at 3.3V
Anti-noise
Compensation for targets of varying sizes and operating voltages
Standard internal temperature compensation and optional external temperature compensation
Operating temperature from 0°C to +65°C
3. Ultrasonic Obstacle Avoidance SensorMB1043 MB1033Applications：
People detection
Small target detection
High-sensitivity applications
Robot ranging and obstacle avoidance
Drone ranging and obstacle avoidance
Indoor environments
4. Ultrasonic Obstacle Avoidance SensorBeam angle selection for MB1043 MB1033 in the HRLV-MaxSonar-EZ series

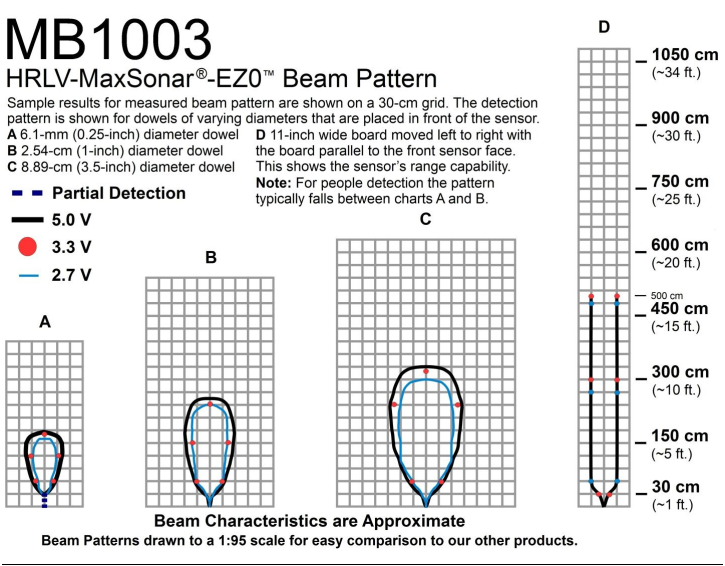

MB1003 beam angle diagram
MB1023 beam angle diagram
MB1043 beam angle diagram
