Product Introduction

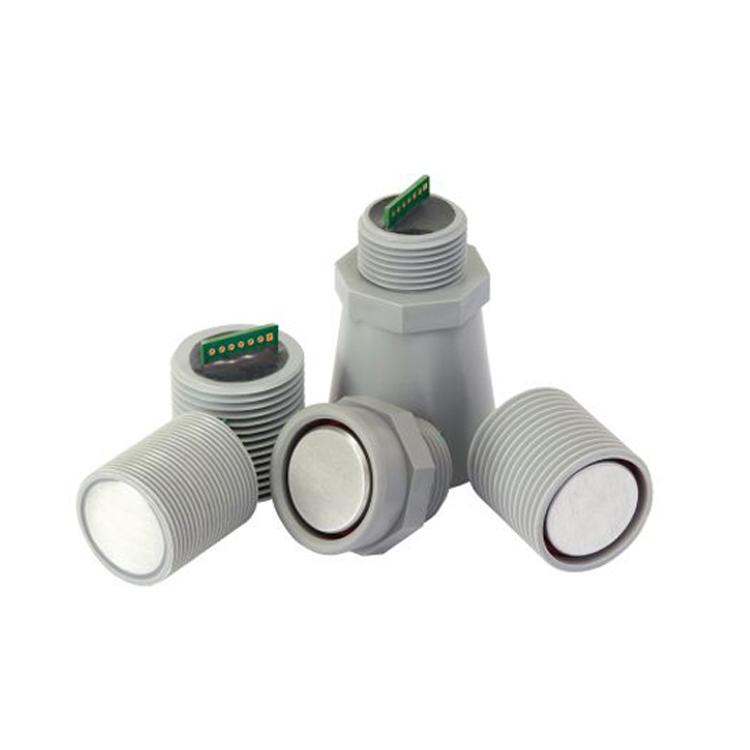

1. IP67 Ultrasonic Sensor MB7480 Description:
The 4-20HR-MaxSonar-WR sensor series is a high-performance ultrasonic precision rangefinder that provides high-accuracy, high-resolution ultrasonic distance measurement in air.
The 4-20HR-MaxSonar-WR sensor series is a cost-effective solution for automation/process control applications requiring precise distance measurement, low voltage operation, space savings, low cost, and IP67 weather resistance. This sensor assembly allows users of more expensive precision rangefinders to reduce system costs without sacrificing performance. The sensor output is compatible with existing PLC equipment and is also suitable for applications with long cable runs.
2.Ultrasonic Level Sensor MB7480 Features:
IP67 dustproof and waterproof standard packaging
Small size, low-cost solution
High resolution
Sensor directly reports distance readings
Real-time calibration, resistant to acoustic and electronic noise
Measures distances up to 5 meters
3.Ultrasonic Sensor MB7480 Applications:
Autonomous navigation
Material level detection
Liquid tank level detection
4.Ultrasonic Level Sensor MB7480 Product Parameters:
1、Detection range: 50cm to 5m
2、Beam angle: 11°
3、Supply voltage: 10V-32V
4、Sampling rate: 7.5Hz
5、Operating temperature: -40°C to +65°C
6、Output: 4-20mA analog current
