Product introduction
I.316L stainless steel pressure sensor 86AProduct description

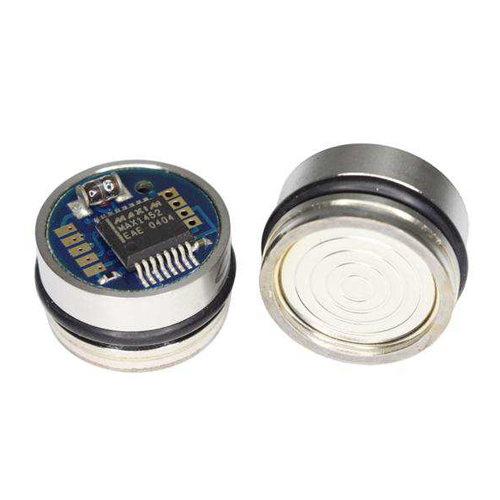

316LStainless steel pressure sensor86AConstant voltage is a small volume, media compatible, 316L stainless steel packaged silicon piezoresistive pressure sensor. This product is designed for O-ring mounting. The sensor uses silicone oil to transfer pressure to the 316L stainless steel diaphragm.
The 86A is suitable for high-performance, low-pressure applications. Custom ASIC temperature compensation, offset correction, provides 0.5~4.5V amplified output.
For similar sensors and plastic threaded fittings, similar to LM pressure sensors
II. 316L stainless steel pressure sensor 86A product featuresPoints：
O-ring mounting
-20°C to +85°C operating temperature range
±1.0% pressure nonlinearity, low to ±3.0% total error band
Solid-state reliability
III. 316L stainless steel pressure sensor 86A applications:
Level control, tank level measurement
OEM equipment
Measurement systems for corrosive liquids and gases, sealed systems, multi-faceted pressure measurement, barometric pressure measurement, submersible depth monitoring
