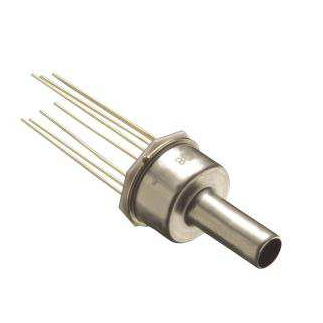

US MEAS silicon piezoresistive pressure sensor - 27AND37
PCB mount pressure sensors
0-100 mV output
Current excitation
Gauge and differential
Temperature compensated
TO-8 package
-20ºC to +85ºC compensated temperature range
±0.1% nonlinearity
1.0% interchangeable span (provided by gain setting resistor)
Solid-state stability
Product introduction
1. US MEAS silicon piezoresistive pressure sensor 27AND37 description:
Silicon piezoresistive pressure sensor27AND37 uses Measurement Specialties' proprietary UltraStable™ die to provide excellent performance over a wide temperature range and long-term stability. Gauge and differential pressure ranges from 0-15 to 0-250 psi are available. It uses laser-trimmed resistors to provide integral temperature compensation over the range of -20ºC to +85ºC. It also includes an additional laser-trimmed resistor to normalize pressure sensitivity variations by programming the gain of an external differential amplifier. This provides ±1% sensitivity interchangeability.
2. US MEAS silicon piezoresistive pressure sensor 27AND37 features:
PCB mount pressure sensors
0-100 mV output
Current excitation
Gauge and differential
Temperature compensated
TO-8 package
-20ºC to +85ºC compensated temperature range
±0.1% nonlinearity
1.0% interchangeable span (provided by gain setting resistor)
Solid-state stability
3. US MEAS silicon piezoresistive pressure sensor 27AND37 applications:
Medical devices
Gas flow measurement
HVAC
Process control
Factory automation
Leak detection
| Sensor type |
Millivolt output pressure sensor |
| Type |
Differential pressure, gauge pressure |
| Leads/pins |
Vent tube same side, vent tube opposite side |
| Supply current |
1.5 |
| Dimensions |
Diameter 11.4 mm [diameter .44 in] |
| Operating temperature |
-40 – 125 °C [ -40 – 257 °F ] |
| Pressure (psi) |
100, 15, 250, 30, 50 |
| Output |
100mV |
| Accuracy |
±.1% span nonlinearity |
| Package |
TO-8 |
