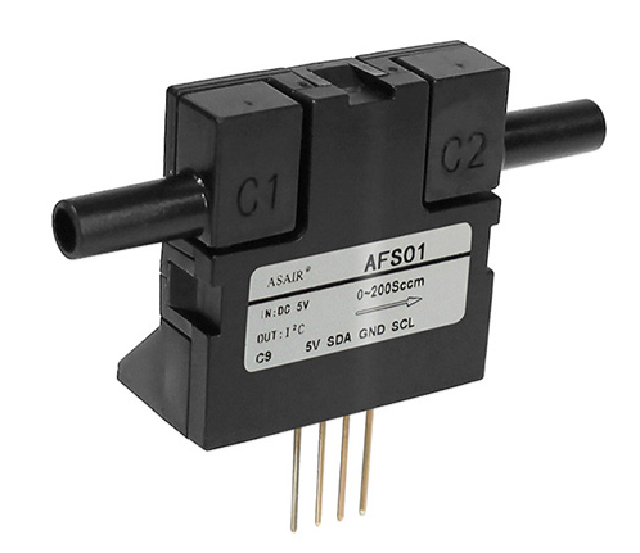

AMTAFS01 Series Gas Micro-Flow Sensor - AMTAFS01 Series
| Parameter | Value |
|---|---|
| Model | AMTAFS01 Series |
| Measurement range (sccm) | 0~30、-30~30、0~50、-50~50、0~100、-100~100、0~200、-200~200、0~500、-500~500、0~1000、-1000~1000、0~2000、-2000~2000 |
| Standard Calibration Gas | Air (standard conditions) |
| Withstand Pressure | 0.3Mpa |
| Response time | ≤5ms |
| Accuracy | ±5% reading (standard conditions) |
| Repeatability | ±1% reading (standard conditions) |
| 工作电压 | 5V |
| Operating Current | 7.5mA |
| 工作温度 | -10~+50℃ |
| Storage temperature | -10~+70℃ |
Product Introduction
The AMTAFS01 series sensor is a high-precision gas micro-flow sensor. Based on the heat transfer principle, this sensor incorporates Aosong's independently developed thermal flow chip and a high-performance CMOS microprocessor, enabling precise measurement of minute gas flows.
This series of gas micro-flow sensors adopts PC digital communication, operates at 5V, and features core advantages such as high measurement accuracy, good repeatability, and long-term stability. The product has undergone strict factory calibration, and flow data can be directly obtained by reading commands, greatly reducing user usage costs and the difficulty of secondary development. The product is small in size and suitable for various scenarios requiring gas flow measurement.
Main Application Areas
- Medical Ventilators — Precise monitoring of gas flow in respiratory support devices.
- Industrial Process Control — Accurate measurement of gas flow in manufacturing processes.
- Environmental Monitoring — Detection and measurement of gas flows in environmental analysis.
- HVAC Systems — Flow measurement for heating, ventilation, and air conditioning.
- Fuel Cell Systems — Monitoring gas flow in hydrogen fuel cell applications.
